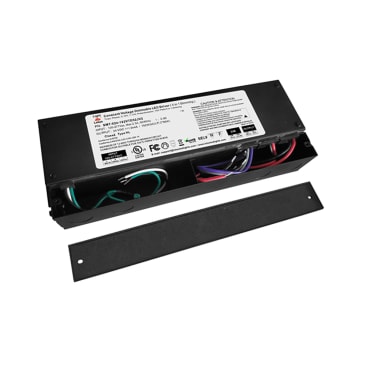

LOTUS SMT-024-192VTD52JV2 24V 192W 5-IN-1 DIMMABLE DRIVER
MFR Part #: SMT-024-192VTD52JV2
SKU #: 1266966
Brand: Lotus LED Lights
UPC: 606638038448
Lotus LED Lights SMT-024-192VTD52JV2 24V Constant Voltage 192W Driver 5-in-1 Dimmable
7 Year
LED Tape, 24V Ceiling Fixtures
cULus Listed
Product Details
Attributes
Features
Resources
Lotus LED Lights SMT-024-192VTD52JV2 24V 192W 5-in-1 Dimmable cULus Driver with Built-in Wiring Chambers 120-277V Wet
Dimension:
11 in L x 4-1/4 in W x 1-3/4 in H
Series:
Low Voltage Driver
Voltage:
24 V
- 24V 192W class 2 power supply with built-in wiring
- 5-in-1 forward and reverse phase dimming:
- TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
- Power: 2 x 96 W
- Output: 24V DC / 2.5A
- Dry, Damp & Wet Locations
- 10 cu in per chamber
- UL Listed
- Minimum / Maximum Load: 2 x 9.6W / 2 x 96W
- Input 120V - 277V AC
- 0.5 second start time
- Protections: short circuit, over-voltage, over-heat, over-load
- Dimensions: 11" x 4 1/4" x 1 3/4"
Product Details
Lotus LED Lights SMT-024-192VTD52JV2 24V 192W 5-in-1 Dimmable cULus Driver with Built-in Wiring Chambers 120-277V Wet
Attributes
Dimension: 11 in L x 4-1/4 in W x 1-3/4 in H
Series: Low Voltage Driver
Voltage: 24 V
Features
- 24V 192W class 2 power supply with built-in wiring
- 5-in-1 forward and reverse phase dimming:
- TRIAC / ELV / MLV, 0-10V, 1-10V, Potentiometer, 10V PWM
- Power: 2 x 96 W
- Output: 24V DC / 2.5A
- Dry, Damp & Wet Locations
- 10 cu in per chamber
- UL Listed
- Minimum / Maximum Load: 2 x 9.6W / 2 x 96W
- Input 120V - 277V AC
- 0.5 second start time
- Protections: short circuit, over-voltage, over-heat, over-load
- Dimensions: 11" x 4 1/4" x 1 3/4"
