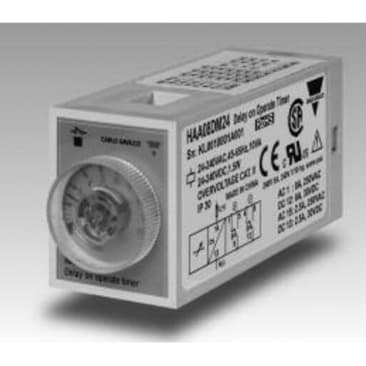

CARLO GAVAZZI HAA14QM24 MULTI FUNC TIMER

MFR Part #: HAA14QM24
SKU #: 1133781
Brand: Carlo Gavazzi
UPC: 8030960000000
Carlo Gavazzi HAA14QM24 Timer, 24 to 240 VAC/VDC, 1/10 hp, 4PDT, 4-Pole
CE Marked | CSA Certified | UL Listed

Carlo Gavazzi Timer, 24 to 240 VAC/VDC, 5 A, 45 to 65 Hz, 1.5 W, 1/10 hp HP Rating, >=2 kVAC Dielectric, 4 Pole, 4PDT, 0.1 s to 100 hr, Socket Mount, 14-Pin Terminal, Delay-On Operate, Interval, Symmetrical Recycler OFF First, Symmetrical Recycler ON First Operating Modes, 100000 cycles Operating Cycles, IP50 IP Rating, -10 to 55 deg C, Polyamide 6/6

Delay-on operate timer with 4-functions and selectable time ranges from 0.1 s to 100 hr, housing 21.5 x 28 mm with 8-pin and 14-pin blade socket.

Product Details

Carlo Gavazzi Timer, 24 to 240 VAC/VDC, 5 A, 45 to 65 Hz, 1.5 W, 1/10 hp HP Rating, >=2 kVAC Dielectric, 4 Pole, 4PDT, 0.1 s to 100 hr, Socket Mount, 14-Pin Terminal, Delay-On Operate, Interval, Symmetrical Recycler OFF First, Symmetrical Recycler ON First Operating Modes, 100000 cycles Operating Cycles, IP50 IP Rating, -10 to 55 deg C, Polyamide 6/6

Delay-on operate timer with 4-functions and selectable time ranges from 0.1 s to 100 hr, housing 21.5 x 28 mm with 8-pin and 14-pin blade socket.

Attributes

Amperage Rating: 5 A
Contact Configuration: 4PDT
Dielectric Strength: >=2 kVAC
Frequency Rating: 45 to 65 Hz
HP Rating: 1/10 hp
IP Rating: IP50
Material: Polyamide 6/6
Mounting Type: Socket
Number of Poles: 4
Operating Cycles: 100000 Cycles
Operating Modes: Delay-On Operate, Interval, Symmetrical Recycler OFF First, Symmetrical Recycler ON First
Power Rating: 1.5 W
Temperature Rating: -10 to 55 deg C
Terminal Type: 14-Pin
Timing Range: 0.1 s to 100 hr
Voltage Rating: 24 to 240 VAC/VDC

Features

  • Dip-switch selection of time range
  • Knob-adjustable time setting
  • Dip-switch selection of operating mode (4-functions)
  • Automatic start
  • +/-0.3% on full scale RADIANS (repeatability)
  • 8-pin, 14-pin blade socket for HAA08, HAA14 respectively
  • 8 A DPDT relay (HAA08), 5 A 4PDT relay (HAA14) output
  • LED indication for relay status and power supply on
