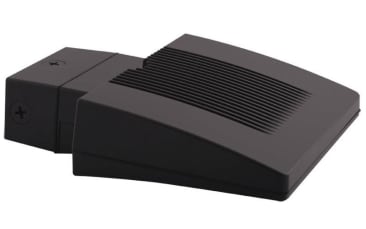

RCL WPLED26 LED WALLPACK 26W BRZ SURFACE MOUNT FIXTURE
MFR Part #: WPLED26
SKU #: 1093230
Brand: RAB Lighting
UPC: 019813027258
RAB WPLED26 Wallpack,) LED Lamp, 30 W Fixture, 100 to 240/277 VAC, Bronze Housing
5 Years
This product may be subject to ecological fees.
Backplate and Junction Box
Wet Locations
California Title 24 | UL Listed | DLC Certified | IESNA LM-80
Product Details
Attributes
Features
Resources
RAB Wallpack, Series: WPLED, 100 to 240/277 VAC, 30 W Fixture, 0.26/0.16/0.14/0.12 A, LED Lamp, 26 W Lamp, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 66 CRI, Class 2/Constant Current Ballast, 1816 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 6 in L x 9-1/4 in W Dimensions
Color Temperature:5000 K
Country Of Origin:Taiwan
Fixture Wattage:30 W
Lumens:1816 Lumens
Mounting Type:Wall
Amperage Rating:0.26/0.16/0.14/0.12 A
Average Life:100000 hr
Ballast Type:Class 2/Constant Current
Color Rendering Index (CRI):66
Dimensions:6 in L x 9-1/4 in W
Enclosure Type:IP66
Housing Finish:Bronze
Housing Material:Die Cast Aluminum
Lamp Type:LED
Lamp Wattage:26 W
Light Color:Cool White
Series:WPLED
Voltage Rating:100 to 240/277 V AC
- Ultra high efficacy 20 W wallpack
- Maintains 70% of initial lumens at 100000 hr
- Weatherproof high temperature silicone gasket
- Superior heat sinking with die cast aluminum housing and external fins
- Replaces 100W MH
- Suitable for use in 40 deg C ambient temperature
- Cast aluminum thermal management system for optimal heat sinking, the LPACK is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature
- 0.26 A at 120 VAC, 0.16 A at 208 VAC, 0.14 A at 240 VAC, 0.12 A at 277 VAC
- Without photocell
Product Details
RAB Wallpack, Series: WPLED, 100 to 240/277 VAC, 30 W Fixture, 0.26/0.16/0.14/0.12 A, LED Lamp, 26 W Lamp, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 66 CRI, Class 2/Constant Current Ballast, 1816 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 6 in L x 9-1/4 in W Dimensions
Attributes
Color Temperature: 5000 K
Country Of Origin: Taiwan
Fixture Wattage: 30 W
Lumens: 1816 Lumens
Mounting Type: Wall
Amperage Rating: 0.26/0.16/0.14/0.12 A
Average Life: 100000 hr
Ballast Type: Class 2/Constant Current
Color Rendering Index (CRI): 66
Dimensions: 6 in L x 9-1/4 in W
Enclosure Type: IP66
Housing Finish: Bronze
Housing Material: Die Cast Aluminum
Lamp Type: LED
Lamp Wattage: 26 W
Light Color: Cool White
Series: WPLED
Voltage Rating: 100 to 240/277 V AC
Features
- Ultra high efficacy 20 W wallpack
- Maintains 70% of initial lumens at 100000 hr
- Weatherproof high temperature silicone gasket
- Superior heat sinking with die cast aluminum housing and external fins
- Replaces 100W MH
- Suitable for use in 40 deg C ambient temperature
- Cast aluminum thermal management system for optimal heat sinking, the LPACK is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature
- 0.26 A at 120 VAC, 0.16 A at 208 VAC, 0.14 A at 240 VAC, 0.12 A at 277 VAC
- Without photocell
