JAY R SMITH 2692-03 QUAD CLOSE SEAL TRAP 3IN
Product Details
Attributes
Features
Resources

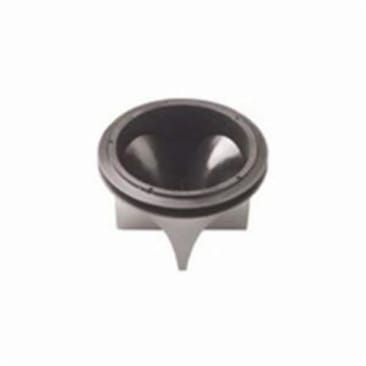

Smith® QUAD CLOSE® Stink Stopper Floor Drain Trap Seal, Series: 2692, For Use With: Floor Drain, 3 in Pipe, 34 gpm, 2.66 in L
The Quad Close Trap Seal forms a barrier to minimize the evaporation of the trap seal of a floor drain. The Quad Close Trap Seal will open to allow drainage and close when there is no flow. It is for use in floor drain outlets or the adjustable strainer throats.
- Trap seal formed from a chemically resistant elastomer
- Note: tested by the IAPMO R and T product certification agency to ASSE standard #1072, barrier type floor drain trap seal protection devices. all sections of the standard were successfully passed
- 0350 (89) quad close trap seal size installs in the throat of Smith adjustable strainers
- Required flow rates per asse standard #1072, section I. all sizes meets or exceeds these flow rates
- Do not use in applications where the room/space has an atmospheric pressure less than the ambient pressure of the exterior of the room/space or building
- AF-GW represents floor designation/rated for all floor types per ASSE 1072, section II
- Copies of the listing certificates and/or ASSE 1072 test report available upon request
Product Details
Smith® QUAD CLOSE® Stink Stopper Floor Drain Trap Seal, Series: 2692, For Use With: Floor Drain, 3 in Pipe, 34 gpm, 2.66 in L
The Quad Close Trap Seal forms a barrier to minimize the evaporation of the trap seal of a floor drain. The Quad Close Trap Seal will open to allow drainage and close when there is no flow. It is for use in floor drain outlets or the adjustable strainer throats.
Attributes
Features
- Trap seal formed from a chemically resistant elastomer
- Note: tested by the IAPMO R and T product certification agency to ASSE standard #1072, barrier type floor drain trap seal protection devices. all sections of the standard were successfully passed
- 0350 (89) quad close trap seal size installs in the throat of Smith adjustable strainers
- Required flow rates per asse standard #1072, section I. all sizes meets or exceeds these flow rates
- Do not use in applications where the room/space has an atmospheric pressure less than the ambient pressure of the exterior of the room/space or building
- AF-GW represents floor designation/rated for all floor types per ASSE 1072, section II
- Copies of the listing certificates and/or ASSE 1072 test report available upon request
