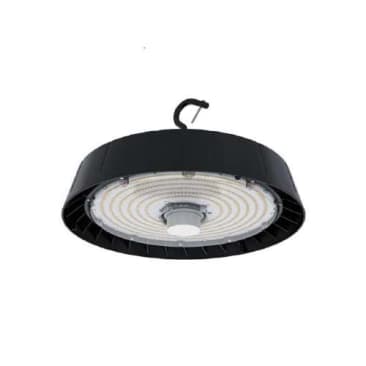

RAB 080583 Image 1

RAB 80583 RHB2-LED240-H-5K-BLK-DIM-PC 120V-347V HIGHBAY

MFR Part #: 080583
SKU #: 1239329
Brand: RAB® Design Lighting
UPC: 61184805836
RAB® 080583 RHB2-LED240 Standard Indoor High Bay Fixture, LED Lamp, 120 to 347 V, Matte Black Housing
5 years
Mounting Hook and 2 m Cord
Industrial, Manufacturing and Factory Environment, Warehouse and Gym Applications
cULus Listed | DLC Premium Listed | DLC 5 Listed

RAB® Indoor High Bay Fixture, Standard, Series: RHB2-LED240, 120 to 347 V, 0.726/0.91/1.05/1.212/2.1 A, LED Lamp, 240 W Lamp, 146.8 Lumens/W Light Output, 50000 hr Average Life, 5000 K Color Temperature, 80 CRI, 0 to 10 VDC Dimming Ballast, Clear Polycarbonate Lens, 36296 Lumens, IP65 Enclosure, Pendant/Suspension/Yoke Mounting, Die-Cast Aluminum Housing Material, Matte Black Housing Finish, 13.768 in Dia x 8.691 in H Dimensions

DLC 5 approved round high bay fixtures ideal for industrial, manufacturing and factory environments. Ruggedly designed, IP65 rated and easy to install with mounting hook.

Product Details

RAB® Indoor High Bay Fixture, Standard, Series: RHB2-LED240, 120 to 347 V, 0.726/0.91/1.05/1.212/2.1 A, LED Lamp, 240 W Lamp, 146.8 Lumens/W Light Output, 50000 hr Average Life, 5000 K Color Temperature, 80 CRI, 0 to 10 VDC Dimming Ballast, Clear Polycarbonate Lens, 36296 Lumens, IP65 Enclosure, Pendant/Suspension/Yoke Mounting, Die-Cast Aluminum Housing Material, Matte Black Housing Finish, 13.768 in Dia x 8.691 in H Dimensions

DLC 5 approved round high bay fixtures ideal for industrial, manufacturing and factory environments. Ruggedly designed, IP65 rated and easy to install with mounting hook.

Attributes

Housing Finish: Matte Black
Average Life: 50000 hr
Ballast Type: 0 to 10 VDC Dimming
Color Rendering Index (CRI): 80
Color Temperature: 5000 K
Enclosure Type: IP65
Housing Material: Die-Cast Aluminum
Lamp Type: LED
Lens Type: Clear Polycarbonate
Type: Standard
Voltage Rating: 120 to 347 V

Features

  • Ruggedly designed with die-cast aluminum housing and clear polycarbonate lens
  • Improved heat sink design - large heat sink with space between LEDs and driver to extend fixture lifespan
  • Fixture can be suspended, pendant or yoke mounted
  • All units come with a mounting hook for easy installation
  • Standard unit comes with a shorting cap that can be removed to install the motion sensor on the field
  • 2.1 A at 120 V, 1.212 A at 208 V, 1.05 A at 240 V, 0.91 A at 277 V, 0.726 A at 347 V current rating

Resources

Instruction/Installation Manual
Specification Sheet
