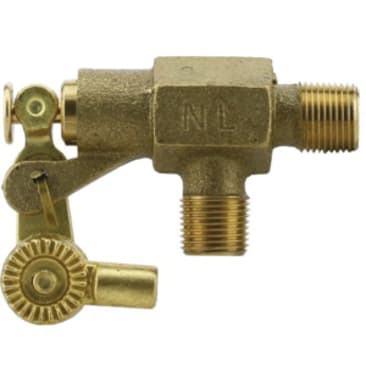

BOSHART 28-BFV-05NL 1/2IN X 1/2IN MPT BRONZE FLOAT VALVE
MFR Part #: 28-BFV-05
SKU #: 1038834
Brand: Boshart Industries
UPC: 777808395835
BOSHART 28-BFV Series 28-BFV-05 Design Float Valve, 1/2 in Nominal, MPT, 125 psi, Brass Body, Lead-Free
Gasket and Nut
Control the filling of livestock water tanks and water tower cooling tanks as well as many other automatic tank filling uses
ANSI/ASME B1.20.1 Specified | ANSI/NSF 372 Specified
Product Details
Attributes
Resources
BOSHART Design Float Valve, 28-BFV Series, MPT Connection, 1/2 in Nominal, 125 psi, 2.7 in Inlet to Outlet Length, 1.38 in Top to Inlet Center, Brass Body, NBR Seat, Lead-Free, 82 deg C, 3.29 in L
Connection Type:MPT
Country Of Origin:Taiwan
Nominal Size:1/2 in
Body Material:Brass
Dimensions:3.29 in L
Inlet to Outlet Length:2.7 in
Lead-Free/Contains Lead:Lead-Free
Pressure Rating:125 psi
Seat Material:NBR
Series:28-BFV Series
Temperature Rating:82 deg C
Top to Inlet Center:1.38 in
Product Details
BOSHART Design Float Valve, 28-BFV Series, MPT Connection, 1/2 in Nominal, 125 psi, 2.7 in Inlet to Outlet Length, 1.38 in Top to Inlet Center, Brass Body, NBR Seat, Lead-Free, 82 deg C, 3.29 in L
Attributes
Connection Type: MPT
Country Of Origin: Taiwan
Nominal Size: 1/2 in
Body Material: Brass
Dimensions: 3.29 in L
Inlet to Outlet Length: 2.7 in
Lead-Free/Contains Lead: Lead-Free
Pressure Rating: 125 psi
Seat Material: NBR
Series: 28-BFV Series
Temperature Rating: 82 deg C
Top to Inlet Center: 1.38 in
