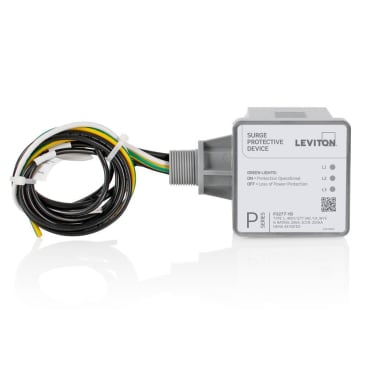

LEVITON P3277-YB P-SERIES 480Y/277VAC TYPE-1 3-PHASE WYE SURGE PROTECTIVE DEVICE
Product Details
Attributes
Features
Resources
Leviton®, P3277-YB, Surge Protective Device, Type 1, Series: P Series, 480Y/277 V AC Electrical Rating, 50/60 Hz Frequency, 3 ph, 12 AWG Wire, 200 kA Short Circuit, 25 kA Peak Surge Current, Modes of Protection: L-N/L-G/N-G/L-L, LED/Audible Alarm Indicator, Environmental Conditions: -40 to 60 deg C Storage Temperature, 0 to 95% Non-Condensing Humidity, NEMA 4X Enclosure, Surface Mounting, 3.25 in H x 5.02 in W x 2.93 in D Dimensions, Polycarbonate, Gray
- The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%, Higher values are better
- The amount of current the device can divert to ground 15 times under specific test conditions and maintain performance levels, Higher values are better
- The maximum voltage a surge protector will let through to connected devices, Lower values are better
- The maximum current a device or system can safely withstand for a specified time or until a specified fuse or circuit breaker opens and clears the circuit
- Maximum line voltage (or V rms) that may be applied to the SPD without damaging the MOV, A lower MCOV rating allows for a lower VPR, but decreases the life of an MOV
- A mode is a path that has an SPD component between two electrical points, More modes is better, 7-Mode example: L1-N, L2-N, L3-N, L1-G, L2-G, L3-G, N-G
Product Details
Leviton®, P3277-YB, Surge Protective Device, Type 1, Series: P Series, 480Y/277 V AC Electrical Rating, 50/60 Hz Frequency, 3 ph, 12 AWG Wire, 200 kA Short Circuit, 25 kA Peak Surge Current, Modes of Protection: L-N/L-G/N-G/L-L, LED/Audible Alarm Indicator, Environmental Conditions: -40 to 60 deg C Storage Temperature, 0 to 95% Non-Condensing Humidity, NEMA 4X Enclosure, Surface Mounting, 3.25 in H x 5.02 in W x 2.93 in D Dimensions, Polycarbonate, Gray
Attributes
Features
- The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%, Higher values are better
- The amount of current the device can divert to ground 15 times under specific test conditions and maintain performance levels, Higher values are better
- The maximum voltage a surge protector will let through to connected devices, Lower values are better
- The maximum current a device or system can safely withstand for a specified time or until a specified fuse or circuit breaker opens and clears the circuit
- Maximum line voltage (or V rms) that may be applied to the SPD without damaging the MOV, A lower MCOV rating allows for a lower VPR, but decreases the life of an MOV
- A mode is a path that has an SPD component between two electrical points, More modes is better, 7-Mode example: L1-N, L2-N, L3-N, L1-G, L2-G, L3-G, N-G
