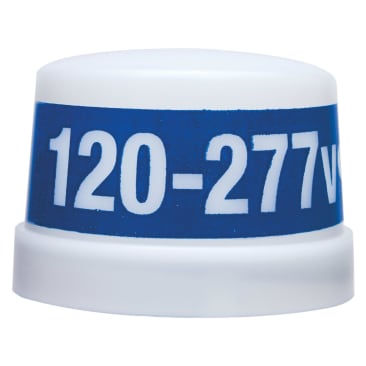

INTERMATIC LED4536SC LED PHOTO CONTROL 120-277 VAC
MFR Part #: LED4536SC
SKU #: 1115468
Brand: Intermatic®
UPC: 078275143647
Intermatic® LED4536SC Photocontrol, 105 to 305 VAC, 1000 W Tungsten, 1800 VA Ballast, Twist-Lock Mount
12 Years
For dusk-to-dawn lighting control
ANSI C136.10 | UL/cULus Listed | CAS Approved | Title CA 20 | RoHS Compliant | PROP65: it is not known to contain any chemicals associated with this regulation | CSA Approved
Product Details
Attributes
Features
Resources
Intermatic® Photocontrol, 105 to 305 VAC, 8 A, 50/60 Hz Frequency, 1000 W Tungsten, 1800 VA Ballast, 510 J MOV Arrester, 2 to 5 s Timing, Silicone/IR Filter Sensor, 1.5 FC ON, 2.25 FC OFF Sensitivity, NEMA 4/10 Enclosure, Environmental Conditions: -40 to 158 deg F, 1500 Cycles Operating Cycles, Twist-Lock Mounting, Translucent, 2.97 in Dia x 2.721 in H Dimensions
Amperage Rating:
8 A
Arrester:
510 J MOV
Ballast Load:
1800 VA
Color:
Translucent
Country Of Origin:
Mexico
Dimensions:
2.97 in Dia x 2.721 in H
Enclosure Type:
NEMA 4/10
Environmental Conditions:
-40 to 158 deg F
Frequency Rating:
50/60 Hz
Mounting Type:
Twist-Lock
Operating Cycles:
1500 Cycles
Rewards:
AD Rewards
Sensitivity:
1.5 FC ON, 2.25 FC OFF
Sensor Type:
Silicone/IR Filter
Timing Range:
2 to 5 s
Tungsten Rating:
1000 W
Voltage Rating:
105 to 305 VAC
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- Conformal coated PCB
- Exceeds 15,000 ON/OFF switching cycles
- Ideal for single or multi-fixture HID and LED installations (up to 2,220 W at 277 VAC)
- 510 J MOV surge protection
- High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
- All components meet 20-year life expectancy
Product Details
Intermatic® Photocontrol, 105 to 305 VAC, 8 A, 50/60 Hz Frequency, 1000 W Tungsten, 1800 VA Ballast, 510 J MOV Arrester, 2 to 5 s Timing, Silicone/IR Filter Sensor, 1.5 FC ON, 2.25 FC OFF Sensitivity, NEMA 4/10 Enclosure, Environmental Conditions: -40 to 158 deg F, 1500 Cycles Operating Cycles, Twist-Lock Mounting, Translucent, 2.97 in Dia x 2.721 in H Dimensions
Attributes
Amperage Rating: 8 A
Arrester: 510 J MOV
Ballast Load: 1800 VA
Color: Translucent
Country Of Origin: Mexico
Dimensions: 2.97 in Dia x 2.721 in H
Enclosure Type: NEMA 4/10
Environmental Conditions: -40 to 158 deg F
Frequency Rating: 50/60 Hz
Mounting Type: Twist-Lock
Operating Cycles: 1500 Cycles
Rewards: AD Rewards
Sensitivity: 1.5 FC ON, 2.25 FC OFF
Sensor Type: Silicone/IR Filter
Timing Range: 2 to 5 s
Tungsten Rating: 1000 W
Voltage Rating: 105 to 305 VAC
Features
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- Conformal coated PCB
- Exceeds 15,000 ON/OFF switching cycles
- Ideal for single or multi-fixture HID and LED installations (up to 2,220 W at 277 VAC)
- 510 J MOV surge protection
- High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
- All components meet 20-year life expectancy
