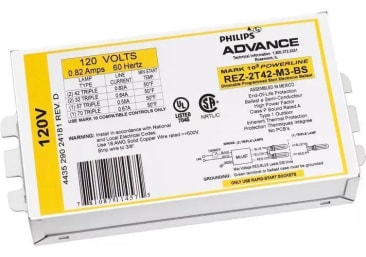

PHILIPS 182196 Image 1

PHILIPS 182196 MARK10 POWERLINE DIMMABLE CFL BALLAST 42W CFL 4-PIN 120V

MFR Part #: 182196
SKU #: 1116865
Brand: Signify | Advance
UPC: 781087114575
Advance MARK 10 POWERLINE 182196 Controllable Electronic Ballast, CFL Lamp, 42 W Lamp, 120 VAC, Programmed, 0.05 to 1 Ballast Factor
This product may be subject to ecological fees.
Outdoor Applications
BAA Compliant | CEC Certified | CSA Certified | FCC Approved | UL Listed

Advance MARK 10 POWERLINE Ballast, Controllable Electronic, CFL Lamp, 42 W Lamp, 20 to 98 W Wattage, 120 VAC, 0.82 A, 60 Hz Frequency, Programmed Start, 50 deg F Minimum Starting, Total Harmonic Distortion: 0.1, Power Factor: 0.98, Yes Dimmable, 2 Lamps, GX24q Lamp Base, Ballast Factor: 0.05 to 1, 70 deg C, Metal, 5.5 in L x 3 in W x 1.29 in H Dimensions

For companies looking to make their fixed output linear T8, 4-pin CFL and T5/HO fluorescent systems more cost effective and sustainable, Mark 10 Powerline ballasts provide an easy solution without the need for additional control leads. Simply, (1) replace the ballast, (2) replace the switch, (3) dim the lights, that is all it takes. It's that easy-to bring the convenience and flexibility of fluorescent dimming to conference rooms, private offices, auditoriums, architectural cove lighting - anywhere dimming is required.

Product Details

Advance MARK 10 POWERLINE Ballast, Controllable Electronic, CFL Lamp, 42 W Lamp, 20 to 98 W Wattage, 120 VAC, 0.82 A, 60 Hz Frequency, Programmed Start, 50 deg F Minimum Starting, Total Harmonic Distortion: 0.1, Power Factor: 0.98, Yes Dimmable, 2 Lamps, GX24q Lamp Base, Ballast Factor: 0.05 to 1, 70 deg C, Metal, 5.5 in L x 3 in W x 1.29 in H Dimensions

For companies looking to make their fixed output linear T8, 4-pin CFL and T5/HO fluorescent systems more cost effective and sustainable, Mark 10 Powerline ballasts provide an easy solution without the need for additional control leads. Simply, (1) replace the ballast, (2) replace the switch, (3) dim the lights, that is all it takes. It's that easy-to bring the convenience and flexibility of fluorescent dimming to conference rooms, private offices, auditoriums, architectural cove lighting - anywhere dimming is required.

Attributes

Country Of OriginUS
Lamp TypeCFL
Lamp Wattage42 W
Number of Lamps2
Wattage20 to 98 W
Amperage Rating.82 A
Ballast Factor0.05 to 1
Dimensions5.5 in L x 3 in W x 1.29 in H
DimmableYes
Frequency Rating60 Hz
Lamp Base TypeGX24q
MaterialMetal
Minimum Starting Temperature50 deg F
Power Factor.98
Start TypeProgrammed
Temperature Range70 deg C
Total Harmonic Distortion.1
TypeControllable Electronic
Voltage Rating120 VAC

Features

  • Length mounting feet with SmartMate™ dual entry color coded connectors
