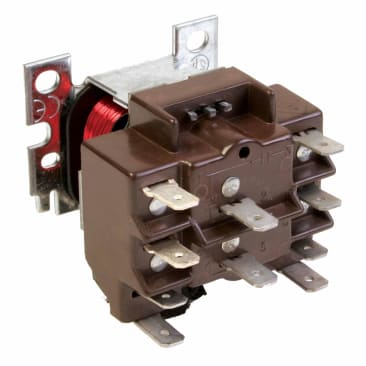

HONEYWELL R4222B1082/U RELAY
MFR Part #: R4222B1082/U
SKU #: 0482132
Brand: Honeywell
UPC: 085267075633
Resideo R4222B1082/U Heavy Duty Relay, SPDT Contact, 120 VAC V Coil
Refrigeration and Air Conditioning Equipment, Appliances, Vending Machines and Similar Applications
CSA Certified | UL Listed
Product Details
Attributes
Features
Resources
Resideo Relay, Heavy Duty, Series: R4222, 50/60 Hz Frequency, 120 VAC Coil, SPDT Contact Form, 1 Pole, Quick-Connect Terminal, -20 to 150 deg F, 2-5/32 in W x 2-3/8 in D x 1-7/8 in H Dimensions
Provide general purpose switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.
Coil Voltage:
120 VAC
Contact Form:
SPDT
Country Of Origin:
Mexico
Dimensions:
2-5/32 in W x 2-3/8 in D x 1-7/8 in H
Frequency Rating:
50/60 Hz
Number of Poles:
1
Series:
R4222
Temperature Rating:
-20 to 150 deg F
Terminal Type:
Quick-Connect
Type:
Heavy Duty
- Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
- Untapped coil assures cooler operation
- Laminated magnet construction for high efficiency
- Base designed for easy replacement of competitive relays
- Plug compatible with Steveco 90 - 340 and Mars®90340
