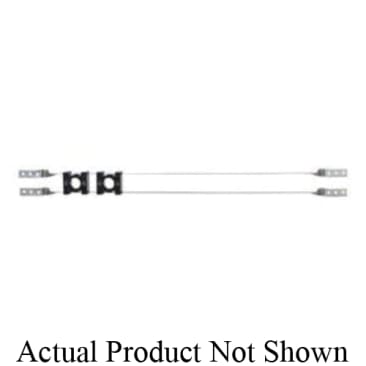

SIOUX CHIEF 525-241PB STRONGARM BRACKET WITH 1 PEX BEND
Product Details
Attributes
Features
Resources
Sioux Chief StrongArm™ Twisted Bracket, Series: 525-PB, 25 lb, 16 ga Thickness, Steel, Galvanized, 2.2712 in W x 2.1472 in H, 140 deg F
Sioux Chief 525-PB series StrongArm™ with Plastic Bend Support preassembled bracketing system shall be used when penetrating a wall with 1/2 in PEX. Brackets shall be corrosion-resistant and secured to wood or metal studs with approved hardware. System shall include plastic bend (elbow) device that swivels 360 degree when captured within a LockBlock™ assembly. Plastic Bend Support shall slide across pair of parallel brackets allowing installer to secure 1/2 in PEX tube at any desired location within the stud cavity. Bracket assembly with Plastic Bend Support devices and bulk components shall be IAPMO listed.
- Use when stubbing out with 1/2 in flexible CTS tube
- StrongArm™ brackets provide a very rigid installation
- Plastic elbow swivels 360 deg to work with tubing coming from any direction
- PEX Bend LockBlock™ are pre-assembled on each pair of brackets
- Position stub outs at any desired location within the stud bay
- When screw on blocks are tightened, blocks compress on tube, brackets and elbow eliminating all movement
- Twisted brackets mount to face of stud, and L-bent brackets mount inside stud cavity
- For 24 in stud bay
- (1) plastic PEX bend support
Product Details
Sioux Chief StrongArm™ Twisted Bracket, Series: 525-PB, 25 lb, 16 ga Thickness, Steel, Galvanized, 2.2712 in W x 2.1472 in H, 140 deg F
Sioux Chief 525-PB series StrongArm™ with Plastic Bend Support preassembled bracketing system shall be used when penetrating a wall with 1/2 in PEX. Brackets shall be corrosion-resistant and secured to wood or metal studs with approved hardware. System shall include plastic bend (elbow) device that swivels 360 degree when captured within a LockBlock™ assembly. Plastic Bend Support shall slide across pair of parallel brackets allowing installer to secure 1/2 in PEX tube at any desired location within the stud cavity. Bracket assembly with Plastic Bend Support devices and bulk components shall be IAPMO listed.
Attributes
Features
- Use when stubbing out with 1/2 in flexible CTS tube
- StrongArm™ brackets provide a very rigid installation
- Plastic elbow swivels 360 deg to work with tubing coming from any direction
- PEX Bend LockBlock™ are pre-assembled on each pair of brackets
- Position stub outs at any desired location within the stud bay
- When screw on blocks are tightened, blocks compress on tube, brackets and elbow eliminating all movement
- Twisted brackets mount to face of stud, and L-bent brackets mount inside stud cavity
- For 24 in stud bay
- (1) plastic PEX bend support
