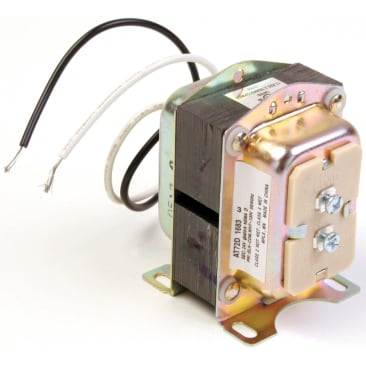

HONEYWELL AT72D1956/U TRANSFORMER (AT72D1188)
MFR Part #: AT72D1956/U
SKU #: 0483555
Brand: Honeywell
UPC: 085267161145
Resideo AT72D1956/U Transformer With 9 in Lead Wires, 120 V AC Primary
(2) Screw Terminals Secondary
40 VA transformers power 24 V systems including thermostats, gas valves and relays.
CSA Certified | UL 1585 | NEC Class 2 Not Wet Class 3 wet
Product Details
Attributes
Features
Resources
Resideo Transformer, Series: AT72D, 120 V AC Primary, 50/60 Hz Frequency, Multi-Mount Mounting, Specifications: NEMA D, -20 to 105 deg F, 3 in W x 2-5/16 in D x 6-7/16 in H Dimensions, Domestic/Import: Import
Resideo 40 VA transformers power 24 V systems including thermostats, gas valves and relays.
Country Of Origin:China
Dimensions:3 in W x 2-5/16 in D x 6-7/16 in H
Domestic/Import:Import
Frequency Rating:50/60 Hz
Mounting Type:Multi-Mount
Primary Voltage:120 V AC
Series:AT72D
Specifications:NEMA D, -20 to 105 deg F
- Override protection
- Color-coded lead wires for primary connections
- Energy limiting
- Transformers are marked NEMA Type D enclosure
Product Details
Resideo Transformer, Series: AT72D, 120 V AC Primary, 50/60 Hz Frequency, Multi-Mount Mounting, Specifications: NEMA D, -20 to 105 deg F, 3 in W x 2-5/16 in D x 6-7/16 in H Dimensions, Domestic/Import: Import
Resideo 40 VA transformers power 24 V systems including thermostats, gas valves and relays.
Attributes
Country Of Origin: China
Dimensions: 3 in W x 2-5/16 in D x 6-7/16 in H
Domestic/Import: Import
Frequency Rating: 50/60 Hz
Mounting Type: Multi-Mount
Primary Voltage: 120 V AC
Series: AT72D
Specifications: NEMA D, -20 to 105 deg F
Features
- Override protection
- Color-coded lead wires for primary connections
- Energy limiting
- Transformers are marked NEMA Type D enclosure
