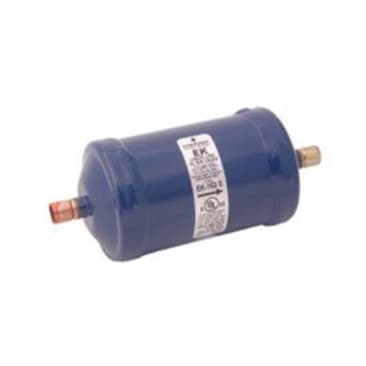

WHITE RODGERS 047617 Image 1
WHITE RODGERS 047617 Image 2
WHITE RODGERS 047617 Image 3
content loaded
WHITE RODGERS 047617 Image 1

WHITE RODGERS 047617 EK 165 5/8 SAE FLARE LIQUID LINE FILTER DRIER

MFR Part #: 047617
SKU #: 1291255
Brand: White-Rodgers™
UPC: 400051884909
WHITE-RODGERS™ EK Series 047617 Liquid Line Filter Drier, 5/8 in, SAE Flared, 16 cu-in Volume
1 Year
For maximum filtration in both air conditioning and refrigeration applications
CRN 0E21971.513467890YTN|UL/CUL File No. SA 3124

WHITE-RODGERS™ Liquid Line Filter Drier, Series: EK Series, Model: EK 165, 5/8 in Size, SAE Flared Connection Type, 680 psig, 20 um, 16 cu-in, R-22, R-410A, R-448A, R-449A, R-134A, R-450A, R-513A, R-290, R-404A, R-507, R-452A, R-452C, R-407C, R-744, 13.5 ton Flow, For Use With: CFC, HCFC, HFC Refrigerants, Epoxy Powder-Coated, 2.64 in Dia x 7.57 in L, Import

The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC, and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.

Product Details

WHITE-RODGERS™ Liquid Line Filter Drier, Series: EK Series, Model: EK 165, 5/8 in Size, SAE Flared Connection Type, 680 psig, 20 um, 16 cu-in, R-22, R-410A, R-448A, R-449A, R-134A, R-450A, R-513A, R-290, R-404A, R-507, R-452A, R-452C, R-407C, R-744, 13.5 ton Flow, For Use With: CFC, HCFC, HFC Refrigerants, Epoxy Powder-Coated, 2.64 in Dia x 7.57 in L, Import

The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC, and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.

Attributes

Domestic/Import: Import
Finish: Epoxy Powder-Coated
Material: Steel
Series: EK Series
Suitable For Use With: CFC, HCFC, HFC Refrigerants
Connection Type: SAE Flared
Dimensions: 2.64 in Dia x 7.57 in L
Flow Capacity: 13.5 ton
Micron Rating: 20 um
Model: EK 165
Pressure Rating: 680 psig
Refrigerant Type: R-22, R-410A, R-448A, R-449A, R-134A, R-450A, R-513A, R-290, R-404A, R-507, R-452A, R-452C, R-407C, R-744
Size: 5/8 in
Volume: 16 cu-in

Features

  • Filtration first for more effective use of surface area of desiccant
  • High moisture and acid removal capacity
  • Solid copper connections
  • Corrosion resistant epoxy powder paint finish
  • Approved for POE oils with Copeland™ compressors
  • Shock resistant steel shell construction

Resources

Catalog
Instruction/Installation Manual
SDS
Specification Sheet
