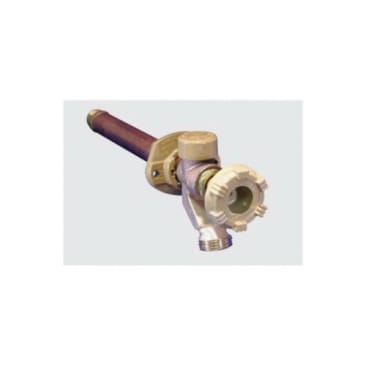

WOODFORD 17P-14-MH MODEL 17 1/2X14 IP NON-FREEZE WALL HYDRANT WITH METAL HANDLE
Product Details
Attributes
Features
Resources
Woodford® Wall Faucet, Anti-Siphon Freezeless, Series: Model 17, 1/2 or 3/4 in Nominal, Combination FNPT x MNPT, 14 in Wall Thickness, 125 psi, Wheel Handle, 120 deg F, 1-1/16 in Dia Inlet, Domestic
The freezeless Model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require and add-on vacuum breaker.
- This unit offers anti-siphon protection
- 3/4 in male hose thread nozzle
- Stainless steel seat - eliminates wire draw
- EPDM packing to prevent leaking
- Full circle operating threads on valve body and retainer
- No lead solder
- Standard "O" size seat washer
- Powder-coated, die cast aluminum handle
- Adjustable polycarbonate wall flange
Product Details
Woodford® Wall Faucet, Anti-Siphon Freezeless, Series: Model 17, 1/2 or 3/4 in Nominal, Combination FNPT x MNPT, 14 in Wall Thickness, 125 psi, Wheel Handle, 120 deg F, 1-1/16 in Dia Inlet, Domestic
The freezeless Model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require and add-on vacuum breaker.
Attributes
Features
- This unit offers anti-siphon protection
- 3/4 in male hose thread nozzle
- Stainless steel seat - eliminates wire draw
- EPDM packing to prevent leaking
- Full circle operating threads on valve body and retainer
- No lead solder
- Standard "O" size seat washer
- Powder-coated, die cast aluminum handle
- Adjustable polycarbonate wall flange
