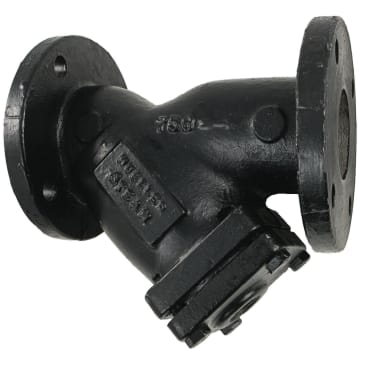

MAS 041-07579 Image 1

MAS 041-07579 4 FLG Y-STRAINER MUELLER 758

MFR Part #: 041-07579
SKU #: 1205453
Brand: Approved Vendor
UPC: 400009331530
MAS™ 758-4 Y-Strainer, 4 in Nominal, Cast Iron
Limited
For straining foreign matter from pipelines and provide economical protection for pumps and other mechanical equipment
ANSI Specified

Mueller Steam Specialty™ Y-Strainer, Series: 758, 4 in Nominal, Flanged Connection, 0.062 in Perforation, 245 gpm Flow Rate, Cast Iron Housing, 12-1/8 in L, 125 to 200 psi, 150 to 450 deg F, 304 Stainless Steel Screen, Non-Asbertos Gasket

Series 758 cast iron flanged end Y-strainer is used to strain foreign matter from pipelines and provide economical protection for costly pumps, meters, valves and other similar mechanical equipment. This class 125 Y-strainer has a cast iron body and 304 stainless steel screens. Features tapered seats in both the body and cover flange retain screen and prevent particle bypass.

Product Details

Mueller Steam Specialty™ Y-Strainer, Series: 758, 4 in Nominal, Flanged Connection, 0.062 in Perforation, 245 gpm Flow Rate, Cast Iron Housing, 12-1/8 in L, 125 to 200 psi, 150 to 450 deg F, 304 Stainless Steel Screen, Non-Asbertos Gasket

Series 758 cast iron flanged end Y-strainer is used to strain foreign matter from pipelines and provide economical protection for costly pumps, meters, valves and other similar mechanical equipment. This class 125 Y-strainer has a cast iron body and 304 stainless steel screens. Features tapered seats in both the body and cover flange retain screen and prevent particle bypass.

Attributes

Additional Information: 304 Stainless Steel Screen, Non-Asbertos Gasket
Connection Type: Flanged
Dimensions: 12-1/8 in L
Flow Rate: 245 gpm
Housing Material: Cast Iron
Nominal Size: 4 in
Perforation Size: .062 in
Pressure Rating: 125 to 200 psi
Series: 758
Temperature Rating: 150 to 450 deg F

Features

  • Tapered seats in both the body and cover flange retain screen and prevent particle bypass
  • A 1/4-turn securely locks the screen in its seat
  • Allows for easy bolting of the cover flange
  • Recessed seat in the cover assures accurate screen alignment
  • Bosses at the inlet and outlet flanges are provided for the gauge taps
  • Self-cleaning is accomplished by opening the plug or valve connected to the blow-off outlet

Resources

Instruction/Installation Manual
Specification Sheet
