ENFIELD L361212 12 FR-PP BLIND FLANGE EJ ANSI 150 FAB
Product Details
Attributes
Features
Resources

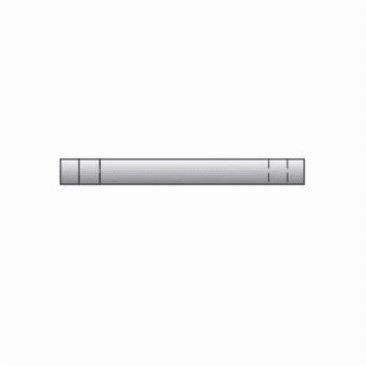

IPEX Enfield™ Electrofusion Blind Flange, 12 in Nominal, 19 in Outside Dia, 150 lb, -10 to 212 deg F, Polypropylene, 17 in ID
Enfield electrofusion polypropylene acid waste systems effectively handle a variety of corrosive chemicals and pH levels found in various chemical waste applications. Fittings are constructed with a heavy-gauge resistance wire integrally molded in the socket, with jointing completed by energizing the resistance wire via a microprocessor controlled Enfusion Control Unit. The result is unprecedented control of jointing and unparalleled joint reliability and repeatability in above- and below-grade acid waste applications. Enfield offers NSF-approved polypro fittings manufactured from flame-retardant polypropylene, which has an operating temperature range from -10 degree F (-23 degree C) to 212 degree F (100 degree C). Several joints can be made at one time. Fittings are quick and easy to connect and install and are maintenance free. Enfield Electrofusion fabricated blind flange (ASA 150) fittings come in 8", 10" and 12" sizes.
- Positive reliable joints made in 2 minutes, installation time is reduced
- Several joints can be made at one time
- Proven reliability for over a decade
- Enfield is manufactured from polypropylene which has an operating temperature range from -10 to 212 deg F, this allows systems to be flushed with boiling water
- Heavy gauge resistance wire molded into sockets, no loose components, controlled fusion of joints
- Easy connecting heavy duty socket terminal posts complete with protection ears
- Microprocessor controlled enfusion unit ensures secure joints and joint repeatability
- Matched system, high quality pipe and fittings are matched to give ease of installation and long term reliability
- Environmentally responsible, with energy conservation a prime concern, you can rely on the fact that IPEX's manufacturing process for Xirtec® and Corzan® piping materials requires less than half the energy needed to produce the equivalent size of carbon steel or steel alloy materials
- Installed cost 50% less than glass
- Breakage factor eliminated
- Maintenance free
- Flame retardant polypropylene
Product Details
IPEX Enfield™ Electrofusion Blind Flange, 12 in Nominal, 19 in Outside Dia, 150 lb, -10 to 212 deg F, Polypropylene, 17 in ID
Enfield electrofusion polypropylene acid waste systems effectively handle a variety of corrosive chemicals and pH levels found in various chemical waste applications. Fittings are constructed with a heavy-gauge resistance wire integrally molded in the socket, with jointing completed by energizing the resistance wire via a microprocessor controlled Enfusion Control Unit. The result is unprecedented control of jointing and unparalleled joint reliability and repeatability in above- and below-grade acid waste applications. Enfield offers NSF-approved polypro fittings manufactured from flame-retardant polypropylene, which has an operating temperature range from -10 degree F (-23 degree C) to 212 degree F (100 degree C). Several joints can be made at one time. Fittings are quick and easy to connect and install and are maintenance free. Enfield Electrofusion fabricated blind flange (ASA 150) fittings come in 8", 10" and 12" sizes.
Attributes
Features
- Positive reliable joints made in 2 minutes, installation time is reduced
- Several joints can be made at one time
- Proven reliability for over a decade
- Enfield is manufactured from polypropylene which has an operating temperature range from -10 to 212 deg F, this allows systems to be flushed with boiling water
- Heavy gauge resistance wire molded into sockets, no loose components, controlled fusion of joints
- Easy connecting heavy duty socket terminal posts complete with protection ears
- Microprocessor controlled enfusion unit ensures secure joints and joint repeatability
- Matched system, high quality pipe and fittings are matched to give ease of installation and long term reliability
- Environmentally responsible, with energy conservation a prime concern, you can rely on the fact that IPEX's manufacturing process for Xirtec® and Corzan® piping materials requires less than half the energy needed to produce the equivalent size of carbon steel or steel alloy materials
- Installed cost 50% less than glass
- Breakage factor eliminated
- Maintenance free
- Flame retardant polypropylene
