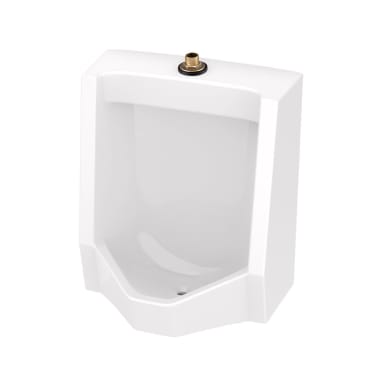

GERBER GHE27800 MONITOR WASHOUT TOP SPUD URINAL
MFR Part #: GHE27800
SKU #: 1171831
Brand: Gerber®
UPC: 671052651078
Gerber® GHE27800 Washout Spud Urinal, Monitor™, 0.125 to 1 gpf Flush Rate, Top Spud, Wall Mount, White, Import
Limited Lifetime
Dual Wall Hangers and Strainer
ADA Compliant | ASME A112.19.2 | cUPC Listed | EPA WaterSense® Certified | HEU Standard
Product Details
Attributes
Features
Resources
Gerber® Washout Spud Urinal, Monitor™, 0.125 to 1 gpf Flush, Top Spud Location, 3/4 in Inlet Spud, 2 in Outlet Tap, 20 to 80 psi Working, Wall Mount, Vitreous China, White, 18-7/8 in W x 14-1/8 in D x 26-1/8 in H Dimensions, Import
Country Of Origin:China
Collection:Monitor™
Dimensions:18-7/8 in W x 14-1/8 in D x 26-1/8 in H
Domestic/Import:Import
Finish/Color:White
Flush Rate:0.125 to 1 gpf
Inlet Spud Size:3/4 in
Material:Vitreous China
Mounting Type:Wall
Outlet Tap Size:2 in
Spud Location:Top
Working Pressure:20 to 80 psi
- High Efficiency Pint Urinal 0.125GPF, 0.5GPF,and 1.0GPF (0.5LPF, 1.9LPF, and 3.8LPF) when used with the appropriate flush valve
- Elongated rim (14 in for finished wall)
- Washout flushing system
- Outlet connection Threaded 2 in Inside (NPTF)
- Replacement Outlet (99-160)
Product Details
Gerber® Washout Spud Urinal, Monitor™, 0.125 to 1 gpf Flush, Top Spud Location, 3/4 in Inlet Spud, 2 in Outlet Tap, 20 to 80 psi Working, Wall Mount, Vitreous China, White, 18-7/8 in W x 14-1/8 in D x 26-1/8 in H Dimensions, Import
Attributes
Country Of Origin: China
Collection: Monitor™
Dimensions: 18-7/8 in W x 14-1/8 in D x 26-1/8 in H
Domestic/Import: Import
Finish/Color: White
Flush Rate: 0.125 to 1 gpf
Inlet Spud Size: 3/4 in
Material: Vitreous China
Mounting Type: Wall
Outlet Tap Size: 2 in
Spud Location: Top
Working Pressure: 20 to 80 psi
Features
- High Efficiency Pint Urinal 0.125GPF, 0.5GPF,and 1.0GPF (0.5LPF, 1.9LPF, and 3.8LPF) when used with the appropriate flush valve
- Elongated rim (14 in for finished wall)
- Washout flushing system
- Outlet connection Threaded 2 in Inside (NPTF)
- Replacement Outlet (99-160)
