WIRSBO Q2087550 Image 1

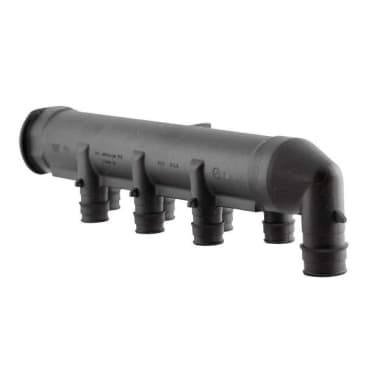

WIRSBO Q2087550 3/4 X 3/4 X 1/2 BRANCH ELBOW 8 OUTLET

MFR Part #: Q2087550
SKU #: 1038154
Brand: Uponor
UPC: 673372201247
Uponor Q2087550 8-Ports Branch Elbow With Mounting Clip, 3/4 in Nominal, ProPEX® End Style, Polysulfone, Domestic
PEX-A Plumbing System
ANSI/NSF 14 | ANSI/NSF 61 | ASTM F877/F1960 | CAN/CSA B137.5 | cQAIus P321 | IAPMO 3946 | ICC ESR 1099 | IPC | NSPC | NPC Canada | UPC Listed

Uponor Branch Elbow, 8-Ports, Multi-Prt Elbow Fitting/Connector, 3/4 in Nominal, ProPEX® End Style, 9.8 in Length, 150 psi Pressure, Polysulfone, 210 deg F, 1.77 in W x 2.33 H Dimensions, Domestic

Commercial Engineered Polymer EP branch multi-port elbows feature an integrated 3/4 or 1 in ProPEX® elbow inlet with 1/2 in ProPEX® branch outlets and mounting clips. The elbows are designed for commercial plumbing applications, and eliminate the need for multiple connections. The elbows are made of EP, which is proven in demanding hot-water applications.

Product Details

Uponor Branch Elbow, 8-Ports, Multi-Prt Elbow Fitting/Connector, 3/4 in Nominal, ProPEX® End Style, 9.8 in Length, 150 psi Pressure, Polysulfone, 210 deg F, 1.77 in W x 2.33 H Dimensions, Domestic

Commercial Engineered Polymer EP branch multi-port elbows feature an integrated 3/4 or 1 in ProPEX® elbow inlet with 1/2 in ProPEX® branch outlets and mounting clips. The elbows are designed for commercial plumbing applications, and eliminate the need for multiple connections. The elbows are made of EP, which is proven in demanding hot-water applications.

Attributes

Connection Type: ProPEX®
Country Of Origin: US
Fitting/Connector Type: Multi-Prt Elbow
Length: 9.8 in
Nominal Size: 3/4 in
Dimensions: 1.77 in W x 2.33 H
Domestic/Import: Domestic
Material: Polysulfone
Pressure Rating: 150 psi
Temperature Rating: 210 deg F
Type: 8-Ports

Features

  • Chevron Phillips Marlex 9018 high-density polyethylene (HDPE) black clip
  • Black phosphate carbon steel screw
  • ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
  • ASTM F1960 specification for cold expansion fittings with PEX reinforcing rings for use with cross-linked polyethylene (PEX) tubing

Resources

Catalog
Specification Sheet
