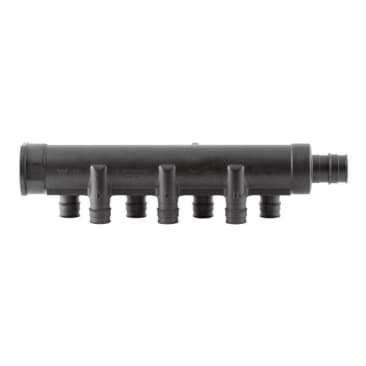

WIRSBO Q2277550 3/4X3/4X1/2 BRANCH MANIFOLD 7 OUTLET
Product Details
Attributes
Features
Resources
Uponor, Q2277550, Branch Tee, 7-Ports, 3/4 in Nominal, ProPEX® End Style, 8.66 in Length, 150 psi Pressure, Polysulfone, 210 deg F, 1.77 in W x 2.10 H Dimensions, Domestic
Commercial Engineered Polymer (EP) branch multi-port tees feature an integrated 3/4 or 1 in ProPEX® inlet with 1/2 in ProPEX® branch outlets, or a 1-1/4 in ProPEX® inlet with 3/4 in ProPEX® branch outlets. Designed for commercial plumbing applications, they eliminate the need for multiple connections. The tees are made of EP, which is proven in demanding hot-water applications. The 3/4 and 1 in multi-port tees come with mounting clips and screws.
- Up to 60% fewer connections and 78% less combined length
- Fewer connections mean reduced liability, faster installs and increased profits
- ProPEX® ASTM F1960 expansion fittings offer larger ID for increased flow compared to F2159 insert fittings
- Visual, manufactured connection no dry-fitting
- Increased performance and efficiency shorter consecutive-use wait time for hot water
- Parallel piping fitting solution for multi-family and hospitality applications less than 40 ft for longest run
- ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
- ASTM F1960 specification for cold expansion fittings with PEX reinforcing rings for use with cross-linked polyethylene (PEX) tubing
Product Details
Uponor, Q2277550, Branch Tee, 7-Ports, 3/4 in Nominal, ProPEX® End Style, 8.66 in Length, 150 psi Pressure, Polysulfone, 210 deg F, 1.77 in W x 2.10 H Dimensions, Domestic
Commercial Engineered Polymer (EP) branch multi-port tees feature an integrated 3/4 or 1 in ProPEX® inlet with 1/2 in ProPEX® branch outlets, or a 1-1/4 in ProPEX® inlet with 3/4 in ProPEX® branch outlets. Designed for commercial plumbing applications, they eliminate the need for multiple connections. The tees are made of EP, which is proven in demanding hot-water applications. The 3/4 and 1 in multi-port tees come with mounting clips and screws.
Attributes
Features
- Up to 60% fewer connections and 78% less combined length
- Fewer connections mean reduced liability, faster installs and increased profits
- ProPEX® ASTM F1960 expansion fittings offer larger ID for increased flow compared to F2159 insert fittings
- Visual, manufactured connection no dry-fitting
- Increased performance and efficiency shorter consecutive-use wait time for hot water
- Parallel piping fitting solution for multi-family and hospitality applications less than 40 ft for longest run
- ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
- ASTM F1960 specification for cold expansion fittings with PEX reinforcing rings for use with cross-linked polyethylene (PEX) tubing
