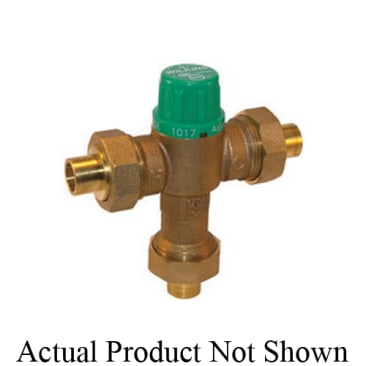

ZURN 34-ZW1017XL AQUA-GUARD 3/4IN FIP THERMOSTATIC MIXING VALVE
Product Details
Attributes
Features
Resources
Zurn® Wilkins Aqua-Gard® Lead-Free Thermostatic Mixing Valve, Series: ZW1017XL, 3/4 in Nominal, FNPT, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 18 gpm Flow, Media: Water, 5-7/16 in Inlet to Outlet Length, 2 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, Nitrile Elastomer Seal/Noryl GFN2 Guide Tube, 5-1/2 in H
The Aqua-Gard® ZW1017XL Tempering Mixing Valve is designed to be used at the hot water source (residential and most light commercial installations) to mix hot and cold water in the distribution system.
- Installs at the potable water heat source
- 18 gpm flow rate at 45 psi pressure loss
Product Details
Zurn® Wilkins Aqua-Gard® Lead-Free Thermostatic Mixing Valve, Series: ZW1017XL, 3/4 in Nominal, FNPT, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 18 gpm Flow, Media: Water, 5-7/16 in Inlet to Outlet Length, 2 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, Nitrile Elastomer Seal/Noryl GFN2 Guide Tube, 5-1/2 in H
The Aqua-Gard® ZW1017XL Tempering Mixing Valve is designed to be used at the hot water source (residential and most light commercial installations) to mix hot and cold water in the distribution system.
Attributes
Features
- Installs at the potable water heat source
- 18 gpm flow rate at 45 psi pressure loss
