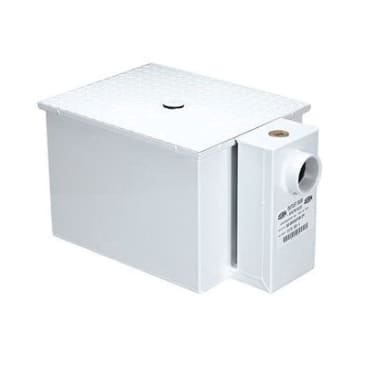

ZURN Z1170-900-4NH-DI Image 1

ZURN Z1170-900-4NH-DI 75GPM GRS TRAP 341S2696

MFR Part #: Z1170-900-4NH-DI
SKU #: 1113796
Brand: Zurn®
UPC: 400007325579
Zurn® Z1170-900-4NH-DI Grease Interceptor, 4 in Pipe, No-Hub, 150 lb Capacity, 75 gpm, 32 in OAH, 24-1/4 in OAW, Steel
For above or below-grade applications

Zurn® Grease Interceptor, 4 in Pipe, No-Hub Connection, 150 lb Capacity, 75 gpm Flow Rate, 32 in Overall Height, 24-1/4 in Overall Width, 40-1/4 in Overall Depth, Steel, Finish: Dura-Coated, White

The Z1170 grease interceptor is an acid-resistant-coated interior and exterior fabricated steel grease interceptor, PDI-rated, with internal air relief by-pass. This interceptor also comes standard with bronze cleanout plug, removable pressure equalizing/flow diffusing inlet baffle, fixed bottom outlet baffle and visible double wall trap seal. Gasketed non-skid secured cover complete with tie-down assembly and Z1108 flow control fitting. Regularly furnished with high inlet and outlet connection.

Product Details

Zurn® Grease Interceptor, 4 in Pipe, No-Hub Connection, 150 lb Capacity, 75 gpm Flow Rate, 32 in Overall Height, 24-1/4 in Overall Width, 40-1/4 in Overall Depth, Steel, Finish: Dura-Coated, White

The Z1170 grease interceptor is an acid-resistant-coated interior and exterior fabricated steel grease interceptor, PDI-rated, with internal air relief by-pass. This interceptor also comes standard with bronze cleanout plug, removable pressure equalizing/flow diffusing inlet baffle, fixed bottom outlet baffle and visible double wall trap seal. Gasketed non-skid secured cover complete with tie-down assembly and Z1108 flow control fitting. Regularly furnished with high inlet and outlet connection.

Attributes

Capacity: 150 lb
Flow Rate: 75 gpm
Color: White
Connection Type: No-Hub
Finish: Dura-Coated
Material: Steel
Overall Depth: 40-1/4 in
Overall Height: 32 in
Overall Width: 24-1/4 in
Pipe Size: 4 in

Features

  • Dual high/low inlet

Resources

Specification Sheet
