ZURN Z5324 20 X 23IN WALL HUNG LAV 4IN CC 19000027
MFR Part #: Z5324
SKU #: 1113527
Brand: Zurn®
UPC: 670240644595

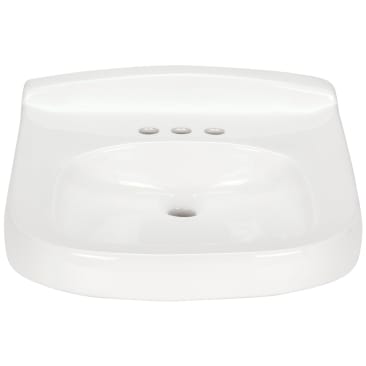

Zurn® Z5324 Z5320 Wheelchair Users Lavatory Sink With Front Overflow, Rectangle Shape, 4 in Faucet Hole Spacing, 23 in W x 20 in D x 3-1/2 in H, Vitreous China
ANSI A117.1 | ASME A112.19.2 | CAN/CSA B45
Product Details
Attributes
Features
Resources
Zurn® Wheelchair Users Lavatory Sink, Series: Z5320, Rectangle Shape, 16 in W x 3 in D x 12-15/16 in H Bowl, 1-1/4 in Drain Opening, 3 Faucet Holes, 4 in Faucet Hole Spacing, 1 Basins, 23 in W x 20 in D x 3-1/2 in H Overall, Vitreous China, ADA Compliance: Yes
ADA Compliance (Yes/No):Yes
Bowl Size:16 in W x 3 in D x 12-15/16 in H
Country Of Origin:China
Drain Location:Rear Center
Drain Opening Size:1-1/4 in
Drain Size:1-1/4 in
Faucet Center Size:4 in
Faucet Hole Spacing:4 in
Finish:White
Length:23 in
Material:Vitreous China
Mounting Type:Wall
Number of Basins:1
Number of Bowls:1
Number of Faucet Holes:3
Number of Holes:3
Overall Dimensions:23 in W x 20 in D x 3-1/2 in H
Series:Z5320, Z5320 Series
Shape:Rectangular, Rectangle
Sink Bowl Size (Single or Left):16 in L x 12-15/16 in W x 3-1/2 in D
- Durable vitreous china resists stains and scratches
- Provides wheelchair access when properly mounted 34 in from finished floor
- Front overflow hole reduces the risk of flooding while providing air to the system
- 4 in centers for 4 in centerset lavatory faucet
- Must be wall-mounted with concealed arm carrier system for support
- 20 in x 23 in wall hung wheel chair lavatory
- Wall hung ADA lavatory with front overflow
- Faucet holes for single, 4 in, 8 in or 12 in centers
Product Details
Zurn® Wheelchair Users Lavatory Sink, Series: Z5320, Rectangle Shape, 16 in W x 3 in D x 12-15/16 in H Bowl, 1-1/4 in Drain Opening, 3 Faucet Holes, 4 in Faucet Hole Spacing, 1 Basins, 23 in W x 20 in D x 3-1/2 in H Overall, Vitreous China, ADA Compliance: Yes
Attributes
ADA Compliance (Yes/No): Yes
Bowl Size: 16 in W x 3 in D x 12-15/16 in H
Country Of Origin: China
Drain Location: Rear Center
Drain Opening Size: 1-1/4 in
Drain Size: 1-1/4 in
Faucet Center Size: 4 in
Faucet Hole Spacing: 4 in
Finish: White
Length: 23 in
Material: Vitreous China
Mounting Type: Wall
Number of Basins: 1
Number of Bowls: 1
Number of Faucet Holes: 3
Number of Holes: 3
Overall Dimensions: 23 in W x 20 in D x 3-1/2 in H
Series: Z5320, Z5320 Series
Shape: Rectangular, Rectangle
Sink Bowl Size (Single or Left): 16 in L x 12-15/16 in W x 3-1/2 in D
Features
- Durable vitreous china resists stains and scratches
- Provides wheelchair access when properly mounted 34 in from finished floor
- Front overflow hole reduces the risk of flooding while providing air to the system
- 4 in centers for 4 in centerset lavatory faucet
- Must be wall-mounted with concealed arm carrier system for support
- 20 in x 23 in wall hung wheel chair lavatory
- Wall hung ADA lavatory with front overflow
- Faucet holes for single, 4 in, 8 in or 12 in centers
