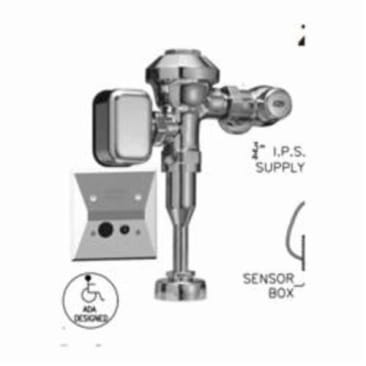

ZURN ZEMS6003AV URINAL FLUSH VALVE
MFR Part #: ZEMS6003AV
SKU #: 1020252
Brand: Zurn®
UPC: 670240528826
Zurn® AquaSense® AV ZEMS6003AV Exposed Automatic Sensor Operated Flush Valve, Hardwired, 1.5 gpf Flush Rate, 3/4 in Inlet, 25 to 80 psi Pressure, Polished Chrome
3 Years
ADA Compliant
Product Details
Attributes
Features
Resources
Zurn® AquaSense® AV Exposed Automatic Sensor Operated Flush Valve, Series: ZEMS6003AV, 3/4 in Urinal Fixture, Hardwired Power Source, 1.5 gpf Flush, 3/4 in Inlet, Triple Filter By-Pass Valve Design, Connection Location: Top Spud, 25 to 80 psi Pressure, Polished Chrome
Flush Rate:1.5 gpf
Inlet Size:3/4 in
Power Source:Hardwired
Connection Location:Top Spud
Finish/Color:Polished Chrome
Fixture Type:3/4 in Urinal
Pressure Rating:25 to 80 psi
Series:ZEMS6003AV
Valve Design:Triple Filter By-Pass
- Clog-resistant triple filter diaphragm
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Low voltage, hardwired in wall sensor and override button with side mount motor operator
- Proprietary DR resistant low lead brass alloy
- Actuator: ZEMS 6 VDC motorized actuator
- Automatic Sensor: Fully configurable sensor range adjustment, 48/168 hr trap seal flush, capacitive sensing push button override
- Control stop has internal siphon-guard protection, vandal-resistant stop cap, sweat solder kit, cast wall flange with set screw
- Vacuum Breaker: High back pressure, one piece hex coupling nut
- Chloramine resistant internal seal
- Adjustable tailpiece
- Spud coupling and flange for Top spud connection
- Note: must use either zurn P6000-HW6 hardwire power converter or zurn P6900-ACA-BA plug-in power converter to ensure proper operation, using a power converter other than zurn may result in operation malfunction or unit failure
Product Details
Zurn® AquaSense® AV Exposed Automatic Sensor Operated Flush Valve, Series: ZEMS6003AV, 3/4 in Urinal Fixture, Hardwired Power Source, 1.5 gpf Flush, 3/4 in Inlet, Triple Filter By-Pass Valve Design, Connection Location: Top Spud, 25 to 80 psi Pressure, Polished Chrome
Attributes
Flush Rate: 1.5 gpf
Inlet Size: 3/4 in
Power Source: Hardwired
Connection Location: Top Spud
Finish/Color: Polished Chrome
Fixture Type: 3/4 in Urinal
Pressure Rating: 25 to 80 psi
Series: ZEMS6003AV
Valve Design: Triple Filter By-Pass
Features
- Clog-resistant triple filter diaphragm
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Low voltage, hardwired in wall sensor and override button with side mount motor operator
- Proprietary DR resistant low lead brass alloy
- Actuator: ZEMS 6 VDC motorized actuator
- Automatic Sensor: Fully configurable sensor range adjustment, 48/168 hr trap seal flush, capacitive sensing push button override
- Control stop has internal siphon-guard protection, vandal-resistant stop cap, sweat solder kit, cast wall flange with set screw
- Vacuum Breaker: High back pressure, one piece hex coupling nut
- Chloramine resistant internal seal
- Adjustable tailpiece
- Spud coupling and flange for Top spud connection
- Note: must use either zurn P6000-HW6 hardwire power converter or zurn P6900-ACA-BA plug-in power converter to ensure proper operation, using a power converter other than zurn may result in operation malfunction or unit failure
