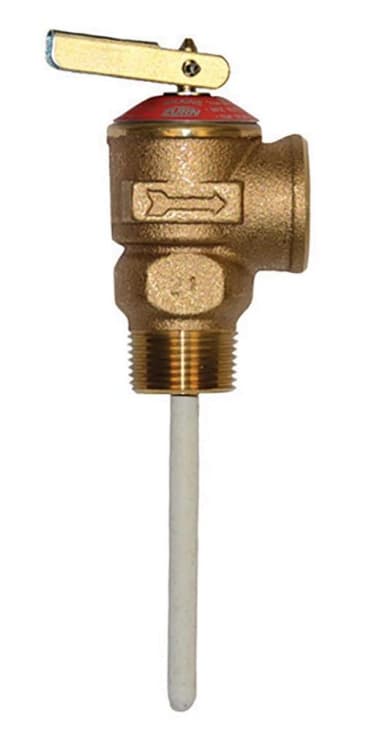

ZURN TP1100A-4C-75C Image 1

ZURN TP1100A-4C-75C 3/4IN MIPXFIP 75PSI PRESSURE RELIEF VALVE

MFR Part #: TP1100A-4C-75C
SKU #: 1300688
Brand: Zurn®
UPC: 8481400099
Zurn® Wilkins TP1100A-4C-75C Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 75 psi Pressure, 210 deg F, 4 in L Probe, Cast Brass/Bronze Body
1 Year
Epoxy Coated Copper Tube Probe
Residential Water Heater
ANSI Z21.22/CSA 4.4|ASTM A313|ASTM B584|ASME Section IV by National Board|CSA Certified|FDA Approved

Zurn® Wilkins Temperature and Pressure Relief Valve, Series: TP1100A, 3/4 in Nominal, MNPT x FNPT, 75 psi, 210 deg F, 4 in Probe Length, Media: Water, 1-5/8 in Top to Inlet Center, Cast Brass/Bronze Body, Stainless Steel Spring Trim, 6-1/2 in H

The TP1100A Zurn® Wilkins Residential Temperature and Pressure Relief Valve is commonly used on residential water heaters.

Product Details

Zurn® Wilkins Temperature and Pressure Relief Valve, Series: TP1100A, 3/4 in Nominal, MNPT x FNPT, 75 psi, 210 deg F, 4 in Probe Length, Media: Water, 1-5/8 in Top to Inlet Center, Cast Brass/Bronze Body, Stainless Steel Spring Trim, 6-1/2 in H

The TP1100A Zurn® Wilkins Residential Temperature and Pressure Relief Valve is commonly used on residential water heaters.

Attributes

Body Material: Cast Brass/Bronze
Dimensions: 6-1/2 in H
End Style: MNPT x FNPT
Media: Water
Nominal Size: 3/4 in
Pressure Rating: 75 psi
Probe Length: 4 in
Series: TP1100A
Temperature Rating: 210 deg F
Top to Inlet Center: 1-5/8 in
Trim Material: Stainless Steel Spring

Features

  • Thermal element protected

Resources

Specification Sheet
