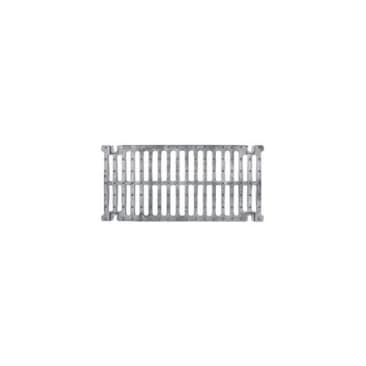

ZURN P12-GDF 12 X 24IN GALVANIZED DUCTILE GRATE 30101798
MFR Part #: P12-GDF
SKU #: 1113545
Brand: Zurn®
UPC: 670240667150
Zurn® P12-GDF P12 Slotted Grate, 12 in Pipe, Import
Dynamic Loads
DIN Rating of F | ANSI Specified | H-20 load rated | FAA load rated | ASTM A536 Grade 80-55-06 | ASTM A123 | PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm
Product Details
Attributes
Resources
Zurn®, P12-GDF, Grate, Slotted, Series: P12, 24 in Length, 11-1/4 in Width, 12 in Pipe, 54 sq-in/ft Open Surface Area, Ductile Iron, Galvanized, Import
The P12-GDF is a class F 12 in galvanized ductile iron slotted grate
Country Of Origin:China
Material:Ductile Iron, Iron
Pipe Size:12 in
Width:11-1/4 in
Additional Information:45/64 in W Slot, Class F DIN Rating
Domestic/Import:Import
Finish:Galvanized
Height:2-1/2 in
Length:24 in
Open Surface Area:54 sq-in/ft
Series:P12
Suitable For Use With:Z882, Z812 and ZF812 12 in W Trench Drain Systems
Surface Area:54 sq-in/linear ft
Type:Slotted
Product Details
Zurn®, P12-GDF, Grate, Slotted, Series: P12, 24 in Length, 11-1/4 in Width, 12 in Pipe, 54 sq-in/ft Open Surface Area, Ductile Iron, Galvanized, Import
The P12-GDF is a class F 12 in galvanized ductile iron slotted grate
Attributes
Country Of Origin: China
Material: Ductile Iron, Iron
Pipe Size: 12 in
Width: 11-1/4 in
Additional Information: 45/64 in W Slot, Class F DIN Rating
Domestic/Import: Import
Finish: Galvanized
Height: 2-1/2 in
Length: 24 in
Open Surface Area: 54 sq-in/ft
Series: P12
Suitable For Use With: Z882, Z812 and ZF812 12 in W Trench Drain Systems
Surface Area: 54 sq-in/linear ft
Type: Slotted
