RED-WHITE 004-46257 Image 2

818197

MFR Part #: 004-46257
SKU #: 1170012
Brand: RWV®
UPC: 670779711577

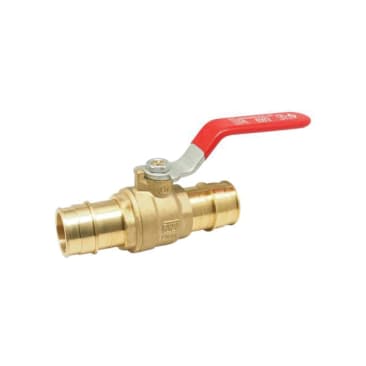

RWV® 004-46257 Ball Valve, 2-1/2 in, PEX, DZR Brass, 300 psi
AB1953 Certified | CSA B125.3 | NSF/ANSI 61/372

RWV® Ball Valve, 2-1/2 in Nominal, PEX Connection, Full Port, 300 psi, Pressure Class: 400 lb, Gas, Oil, Water Media, 8.96 in Inlet to Outlet Length, 3.07 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B927 C27453, DZR Brass Body, PTFE Seat, Brass Stem, NBR Seal, NBR Packing, Steel Handle, Brass Ball, NBR Softgoods, Lead-Free, 15 to 160 deg F, Additional Information: 2-Piece

Product Details

RWV® Ball Valve, 2-1/2 in Nominal, PEX Connection, Full Port, 300 psi, Pressure Class: 400 lb, Gas, Oil, Water Media, 8.96 in Inlet to Outlet Length, 3.07 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B927 C27453, DZR Brass Body, PTFE Seat, Brass Stem, NBR Seal, NBR Packing, Steel Handle, Brass Ball, NBR Softgoods, Lead-Free, 15 to 160 deg F, Additional Information: 2-Piece

Attributes

Connection Type: PEX
Nominal Size: 2-1/2 in
Operator Type: Lever Handle
Pressure Rating: 300 psi
Ball Material: Brass
Body Material: DZR Brass
Handle Material: Steel
Inlet to Outlet Length: 8.96 in
Lead-Free/Contains Lead: Lead-Free
Material Standard: ASTM B927 C27453
Media: Gas, Oil, Water
Packing Material: NBR
Port Type: Full
Seal Material: NBR
Seat Material: PTFE
Softgoods Material: NBR
Stem Material: Brass
Top to Inlet Center: 3.07 in

Features

  • F1960 Full Port
  • Virgin PTFE Seats
  • Double NBR O-ring Packing
  • Blow-Out Proof Stem
  • For Use with PEX Tubing
