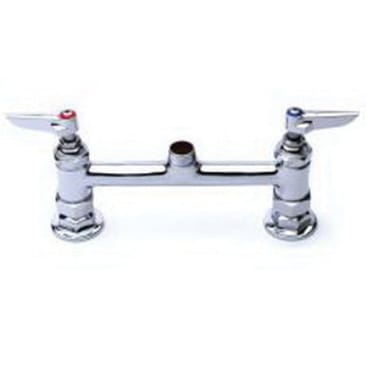

T&S B-0220-LN 8 INCH CENTER DECK MOUNT FCT NO NOZZLE
MFR Part #: B-0220-LN
SKU #: 1235437
Brand: T & S
UPC: 671262002424?
T & S B-0220-LN Double Pantry Swivel Base Manual Faucet, 28.63 gpm Flow Rate, 8 in Center, Polished Chrome
1 Year Limited
ANSI/ICC A117.1 (ADA) | ASME A112.18.1/CSA B125.1 | City of Los Angeles | Commonwealth of Massachusetts BAA/ARRA Certification | NSF 61-Section 9 and NSF/ANSI 372
Product Details
Attributes
Features
Resources
T & S Double Pantry Swivel Base Manual Faucet, 28.63 gpm Flow Rate, 8 in Center Distance, Lever Handle, Side Spray(Y/N): No, 1/2 in Connection, FNPT Connection, Deck Mounting, Eterna Compression, 12-7/16 in W x 5-1/8 in H Dimensions, Brass, Polished Chrome, Domestic
Center Distance:
8 in
Country Of Origin:
US
Mounting Type:
Deck
Connection Size:
1/2 in
Connection Type:
FNPT
Dimensions:
12-7/16 in W x 5-1/8 in H
Domestic/Import:
Domestic
Finish/Color:
Polished Chrome
Flow Rate:
28.63 gpm
Handle Type:
Lever
Material:
Brass
Side Spray(Y/N):
No
Valve/Cartridge Type:
Eterna Compression
- Swivel outlet accepts T and S swing nozzles
- Lever handle with color coded index
- 1/2 in FNPT eccentric inlet with 2 in Dia flange
- Adjustable center from 7-3/4 to 8-1/4 in
- Less nozzles
- 40 to 140 deg F
- Low lead content (0.25% max)
- 20 to 125 psi
- 28.63 gpm at 60 psi
- Polished chrome metal handle
Product Details
T & S Double Pantry Swivel Base Manual Faucet, 28.63 gpm Flow Rate, 8 in Center Distance, Lever Handle, Side Spray(Y/N): No, 1/2 in Connection, FNPT Connection, Deck Mounting, Eterna Compression, 12-7/16 in W x 5-1/8 in H Dimensions, Brass, Polished Chrome, Domestic
Attributes
Center Distance: 8 in
Country Of Origin: US
Mounting Type: Deck
Connection Size: 1/2 in
Connection Type: FNPT
Dimensions: 12-7/16 in W x 5-1/8 in H
Domestic/Import: Domestic
Finish/Color: Polished Chrome
Flow Rate: 28.63 gpm
Handle Type: Lever
Material: Brass
Side Spray(Y/N): No
Valve/Cartridge Type: Eterna Compression
Features
- Swivel outlet accepts T and S swing nozzles
- Lever handle with color coded index
- 1/2 in FNPT eccentric inlet with 2 in Dia flange
- Adjustable center from 7-3/4 to 8-1/4 in
- Less nozzles
- 40 to 140 deg F
- Low lead content (0.25% max)
- 20 to 125 psi
- 28.63 gpm at 60 psi
- Polished chrome metal handle
