ALLTEMP 4JJ0525 370/440V CAPACITOR 25/5MFD
MFR Part #: 4JJ0525
SKU #: 1246617
Brand: Diversitech
UPC: 095247072002

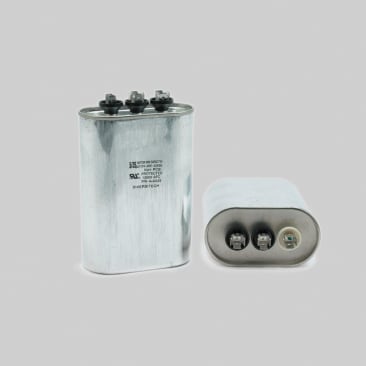

DiversiTech® 4JJ0525 Motor Dual Run Capacitor, MFD Rating: 25+5 uF, 440 VAC, Oval, 3.46 in H, 2.91 in W, 1.91 in D
UL 810 Listed | CSA22.2 no 190 | IEC60252
Product Details
Attributes
Features
Resources
DiversiTech® Motor Dual Run Capacitor, 25+5 uF MFD Rating, 440 VAC, 50/60 Hz, Oval Shape, Quick-Connect Terminal, 60000 hr Average Life, -40 to 70 deg C, Metal Case, 3.46 in Height, 2.91 in Width, 1.91 in D
Country Of Origin:China
Average Life:60000 hr
Depth:1.91 in
Frequency Rating:50/60 Hz
Height:3.46 in
MFD Rating:25+5 uF
Temperature Rating:-40 to 70 deg C
Terminal Type:Quick-Connect
Width:2.91 in
- -5 to 5% capacitance tolerance
- Individually packaged
- Withstanding voltage test: between terminals: rated voltage x 1.75 VAC, 10 sec, between terminals and case: rated voltage x 2 plus 1000 VAC, 60 sec
- Maximum permissible voltage: 110% of the rated voltage
- Maximum permissible current: 130% of the rated current
- Oil filled
- Non-PCB
- Guaranteed for 10,000 hr of life under normal operating conditions
- Operating life of 94% at 60,000 hr
- Quick connect terminal: faston #250 Series size
Product Details
DiversiTech® Motor Dual Run Capacitor, 25+5 uF MFD Rating, 440 VAC, 50/60 Hz, Oval Shape, Quick-Connect Terminal, 60000 hr Average Life, -40 to 70 deg C, Metal Case, 3.46 in Height, 2.91 in Width, 1.91 in D
Attributes
Country Of Origin: China
Average Life: 60000 hr
Depth: 1.91 in
Frequency Rating: 50/60 Hz
Height: 3.46 in
MFD Rating: 25+5 uF
Temperature Rating: -40 to 70 deg C
Terminal Type: Quick-Connect
Width: 2.91 in
Features
- -5 to 5% capacitance tolerance
- Individually packaged
- Withstanding voltage test: between terminals: rated voltage x 1.75 VAC, 10 sec, between terminals and case: rated voltage x 2 plus 1000 VAC, 60 sec
- Maximum permissible voltage: 110% of the rated voltage
- Maximum permissible current: 130% of the rated current
- Oil filled
- Non-PCB
- Guaranteed for 10,000 hr of life under normal operating conditions
- Operating life of 94% at 60,000 hr
- Quick connect terminal: faston #250 Series size
