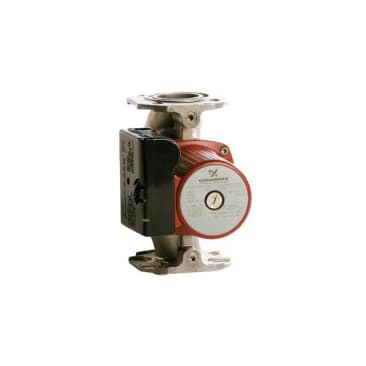

GRUNDFOS 97523136 UPS50-60SF 0.375HP 115V 9H RECIRCULATION PUMP

MFR Part #: 97523136
SKU #: 1270529
Brand: Grundfos
UPC: 5700317647510
Grundfos 97523136 UPS Canned Rotor Circulator Pump, 115 VAC, 1 Phase
Motor
1 and 2-Pipe Heating Systems, Main Pumps, Zone Pumps, Boiler Shunt Pumps, Pumps for Heating Surfaces, Calorifiers, Underfloor Heating Systems, Solar Heating Systems, Heat Pump Systems, Geothermal Heating Systems, Heat Recovery Systems, 2-Pipe Air-Conditioning Systems and Pumps for Refrigeration Units
CSA Certified | ETL Listed

Grundfos, 97523136, Circulator Pump, Canned Rotor, Series: UPS, 21.33 ft Maximum Head, 395 W Power, 115 VAC, 2.7 to 3.6 A, 60 Hz Frequency, 1 ph, 145 psi Maximum, Composite PES Impeller, 140 deg F, Ceramic Radial/Carbon Thrust Bearing, 8-5/8 in W x 8-1/2 in H Dimensions

UPS pumps constitute a complete range of 3-speed circulator pumps, available both in 50 and 60 Hz. The pumps can be used in both open and closed systems. UPS pumps are of the canned rotor type, i.e. pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.

Product Details

Grundfos, 97523136, Circulator Pump, Canned Rotor, Series: UPS, 21.33 ft Maximum Head, 395 W Power, 115 VAC, 2.7 to 3.6 A, 60 Hz Frequency, 1 ph, 145 psi Maximum, Composite PES Impeller, 140 deg F, Ceramic Radial/Carbon Thrust Bearing, 8-5/8 in W x 8-1/2 in H Dimensions

UPS pumps constitute a complete range of 3-speed circulator pumps, available both in 50 and 60 Hz. The pumps can be used in both open and closed systems. UPS pumps are of the canned rotor type, i.e. pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.

Attributes

Maximum Head: 21.33 ft
Series: UPS
Type: Canned Rotor
Voltage Rating: 115 VAC
Amperage Rating: 2.7 to 3.6 A
Bearing Type: Ceramic Radial/Carbon Thrust
Dimensions: 8-5/8 in W x 8-1/2 in H
Frequency Rating: 60 Hz
Impeller Type: Composite PES
Maximum Pressure: 145 psi
Phase: 1
Power Rating: 395 W
Temperature Rating: 140 deg F

Features

  • Maintenance-free
  • Low noise and low energy
  • Complete range and wide range of accessories
  • Stainless steel rotor can and bearing plate
  • Corrosion-resistant impeller
  • No additional motor protection is required
  • Non-electronically controlled circulator pumps for domestic building with speed control
  • Flange pipe connection
  • Stainless steel pump housing
  • Large stator
  • 3-speed motor
