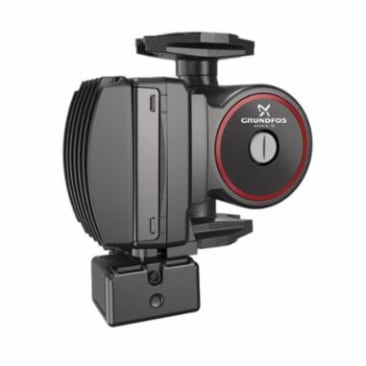

GRUNDFOS 99490914 Image 1

GRUNDFOS 99490914 ALPHA 26-99 115V CAST IRON RECIRCULATION PUMP

MFR Part #: 99490914
SKU #: 1270643
Brand: Grundfos
UPC: 5713829959064
Grundfos A 99490914 Circulator Pump, 1.5 cu-m/hr, 3 to 120 W, 115 V, 0.05 to 1.7 A, 60 Hz, 10 bar Max Pressure, Iron
Commercial Heating, Commercial Hot Water Recirculation, Domestic Hot Water Recirculation, Domestic Heating, District Heating and Industrial Heating Applications
EN 1561 EN-GJL-150 | UL Listed

Grundfos Circulator Pump, Model: A, 1.5 cu-m/hr Flow Rate, 99 dm Maximum Head, 3 to 120 W, 115 V, 0.05 to 1.7 A, 60 Hz, 10 bar Maximum Pressure, 1-1/4 in Connection, -10 to 95 deg C, IP42 Enclosure, Iron, 150 in H x 167 mm W, Additional Information: 983.2 kg/cu-m Density

ALPHA1 26-99 is a high efficiency ECM variable speed circulator designed for various heating and cooling applications. The pump features a 0 to 10 V analog input for speed control and an alarm output signal.

Product Details

Grundfos Circulator Pump, Model: A, 1.5 cu-m/hr Flow Rate, 99 dm Maximum Head, 3 to 120 W, 115 V, 0.05 to 1.7 A, 60 Hz, 10 bar Maximum Pressure, 1-1/4 in Connection, -10 to 95 deg C, IP42 Enclosure, Iron, 150 in H x 167 mm W, Additional Information: 983.2 kg/cu-m Density

ALPHA1 26-99 is a high efficiency ECM variable speed circulator designed for various heating and cooling applications. The pump features a 0 to 10 V analog input for speed control and an alarm output signal.

Attributes

Voltage Rating115 V
Connection Size1-1/4 in
Enclosure TypeIP42
Frequency Rating60 Hz
MaterialIron
