LITTLE GIANT 586610 TE-6-MD-CK
Product Details
Attributes
Features
Resources

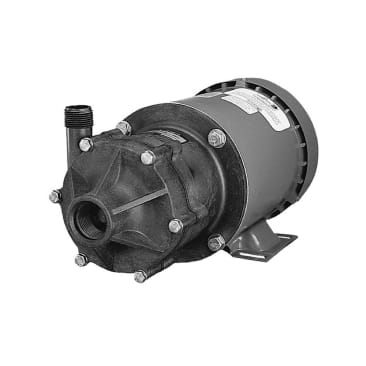

Little GIANT® Magnetic Drive Pump, Model: TE-6-MD-CK, 1 in Suction, 3/4 in Discharge, 35 gpm, 4.7 to 9.4 A, 115/230 VAC, 1/2 hp, 1 ph -Phase, 50/60 Hz, 2850 to 3450 rpm Speed, 49.1 ft Max Feet of Head, 835 W, 200 deg F Max Temperature, 21.3 psi Working Pressure, Kynar Impeller, Kynar Body, 14.4 in L x 8.8 in W x 7 in H
Circulating highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions and other fluids requires a durable pump to hold up against hazardous materials. The CK series handles highly corrosive chemicals at elevated temperatures because of the unique materials used in its construction. These include polyvinylidene fluoride (e.g., Kynar), PTFE, carbon, ceramic and FKM parts. Little Giant's CK series is built to withstand harsh corrosives and abrasives without the worry of damage or destruction to the pump.
- The thermally protected, totally enclosed fan cooled split phase motor aids in safety, halting the temperature from climbing to the point where it can burn up the motor
- This thermal protector will reset once the motor cools down to a safe operating temperature
- Ball bearing
- 1.1 specific gravity
- Fluoroelastomer (FKM) O-ring
Product Details
Little GIANT® Magnetic Drive Pump, Model: TE-6-MD-CK, 1 in Suction, 3/4 in Discharge, 35 gpm, 4.7 to 9.4 A, 115/230 VAC, 1/2 hp, 1 ph -Phase, 50/60 Hz, 2850 to 3450 rpm Speed, 49.1 ft Max Feet of Head, 835 W, 200 deg F Max Temperature, 21.3 psi Working Pressure, Kynar Impeller, Kynar Body, 14.4 in L x 8.8 in W x 7 in H
Circulating highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions and other fluids requires a durable pump to hold up against hazardous materials. The CK series handles highly corrosive chemicals at elevated temperatures because of the unique materials used in its construction. These include polyvinylidene fluoride (e.g., Kynar), PTFE, carbon, ceramic and FKM parts. Little Giant's CK series is built to withstand harsh corrosives and abrasives without the worry of damage or destruction to the pump.
Attributes
Features
- The thermally protected, totally enclosed fan cooled split phase motor aids in safety, halting the temperature from climbing to the point where it can burn up the motor
- This thermal protector will reset once the motor cools down to a safe operating temperature
- Ball bearing
- 1.1 specific gravity
- Fluoroelastomer (FKM) O-ring
