LITTLE GIANT 620231 WS50M-20

Name: LITTLE GIANT 620231 WS50M-20
Brand: Little Giant®
SKU: 1154229
Availability: OutOfStock

MFR Part #: 620231

SKU #: 1154229

Brand: Little Giant®

UPC: 010121121607

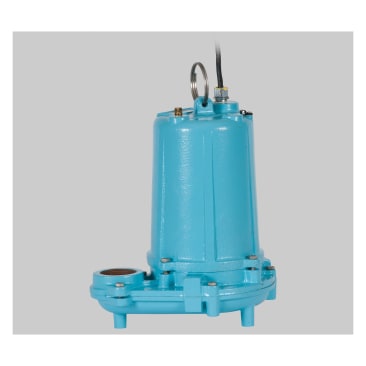

Little Giant® 620231 WS Series Effluent Pump, 90 gpm Max Flow, 10 ft Rated Head, Non-Automatic, 42 ft Max Head, 115 V, 1 ph

3 Years

Cast Iron Split-Phase Oil-Filled Motor

Effluent Wastewater Removal, Dewatering and Water Transfer

cCSAus Certified

Product Details
Attributes
Features
Resources

Little Giant® Effluent Pump, Series: WS Series, 90 gpm Maximum, 10 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 2 in FNPT Outlet, 42 ft Maximum Head, 25 ft Maximum Suction Lift, 1/2 hp, 115 V, 11.6 A, 60 Hz Frequency, 1 ph, 18.2 psi Maximum, 3450 rpm Motor, SJOW 20 ft Cord, Cast Iron Non-Clogging Impeller, 120 deg F, Upper and Lower Ball Bearing, 9.38 in W Dimensions, Import

Product Details

Little Giant® Effluent Pump, Series: WS Series, 90 gpm Maximum, 10 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 2 in FNPT Outlet, 42 ft Maximum Head, 25 ft Maximum Suction Lift, 1/2 hp, 115 V, 11.6 A, 60 Hz Frequency, 1 ph, 18.2 psi Maximum, 3450 rpm Motor, SJOW 20 ft Cord, Cast Iron Non-Clogging Impeller, 120 deg F, Upper and Lower Ball Bearing, 9.38 in W Dimensions, Import

Attributes

Country Of Origin: Mexico

Horsepower: 1/2 hp

Maximum Flow Rate: 90 gpm

Maximum Head: 42 ft

Outlet Size: 2 in FNPT

Amperage Rating: 11.6 A

Automatic/Non Automatic: Non-Automatic

Bearing Type: Upper and Lower Ball

Cord Type: SJOW 20 ft

Dimensions: 9.38 in W

Domestic/Import: Import

Frequency Rating: 60 Hz

Impeller Type: Cast Iron Non-Clogging

Maximum Pressure: 18.2 psi

Maximum Suction Lift: 25 ft

Motor Speed: 3450 rpm

Phase: 1

Rated Head: 10 ft

Series: WS Series

Temperature Rating: 120 deg F

Voltage Rating: 115 V

Features

Designed for high torque
Handles solids up to 3/4 in Dia

Resources

Catalog

Instruction/Installation Manual

Specification Sheet
