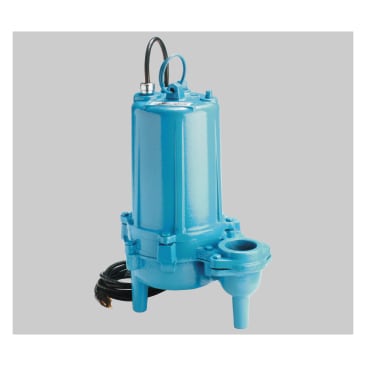

LITTLE GIANT 620258 WS102HM-12
MFR Part #: 620258
SKU #: 1154243
Brand: Little Giant®
UPC: 010121121713
Little Giant® 620258 WS Series Sewage Pump, 1 hp, 230 VAC, 2 in FNPT Outlet, 13.6 A, 1 ph
3 Years
Cast Iron Oil-Filled Motor
For handling raw sewage, commercial dewatering sump applications with up to 2 in solids
cCSAus Certified
Product Details
Attributes
Features
Resources
Little Giant® Sewage Pump, Series: WS Series, 190 gpm Flow Rate, 2 in FNPT Outlet, 48 ft Maximum Head, 1 hp, 230 VAC, 13.6 A, 60 Hz Frequency, 1 ph, 20.8 psi Maximum, SJTW 30 ft Cord, Cast Iron Non-Clogging Impeller, 120 deg F, Upper and Lower Ball Bearing, 12.25 in L x 9.38 in W x 15.1 in H Dimensions, Import
Country Of Origin:Mexico
Horsepower:1 hp
Maximum Head:48 ft
Outlet Size:2 in FNPT
Voltage Rating:230 VAC
Amperage Rating:13.6 A
Bearing Type:Upper and Lower Ball
Cord Type:SJTW 30 ft
Dimensions:12.25 in L x 9.38 in W x 15.1 in H
Domestic/Import:Import
Flow Rate:190 gpm
Frequency Rating:60 Hz
Impeller Type:Cast Iron Non-Clogging
Maximum Pressure:20.8 psi
Phase:1
Series:WS Series
Temperature Rating:120 deg F
- Oil filled motor with double ball bearing capacitor start designed for high torque (1 ph only)
- Designed for continuous operation
- Handles solids up to 2 in Dia
- Power cord sealed at motor housing
- Manual operation
Product Details
Little Giant® Sewage Pump, Series: WS Series, 190 gpm Flow Rate, 2 in FNPT Outlet, 48 ft Maximum Head, 1 hp, 230 VAC, 13.6 A, 60 Hz Frequency, 1 ph, 20.8 psi Maximum, SJTW 30 ft Cord, Cast Iron Non-Clogging Impeller, 120 deg F, Upper and Lower Ball Bearing, 12.25 in L x 9.38 in W x 15.1 in H Dimensions, Import
Attributes
Country Of Origin: Mexico
Horsepower: 1 hp
Maximum Head: 48 ft
Outlet Size: 2 in FNPT
Voltage Rating: 230 VAC
Amperage Rating: 13.6 A
Bearing Type: Upper and Lower Ball
Cord Type: SJTW 30 ft
Dimensions: 12.25 in L x 9.38 in W x 15.1 in H
Domestic/Import: Import
Flow Rate: 190 gpm
Frequency Rating: 60 Hz
Impeller Type: Cast Iron Non-Clogging
Maximum Pressure: 20.8 psi
Phase: 1
Series: WS Series
Temperature Rating: 120 deg F
Features
- Oil filled motor with double ball bearing capacitor start designed for high torque (1 ph only)
- Designed for continuous operation
- Handles solids up to 2 in Dia
- Power cord sealed at motor housing
- Manual operation
