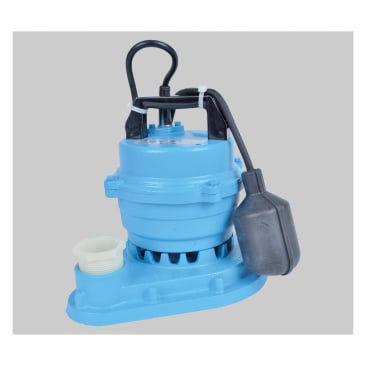

LITTLE GIANT 620089 Image 1

LITTLE GIANT 620089 ESP33M

MFR Part #: 620089
SKU #: 1154206
Brand: Little Giant®
UPC: 010121125902
Little Giant® 620089 ESP33 Submersible Sump Pump, 44 gpm Flow Rate, 1-1/2 in FNPT Outlet, 1 ph, 1/3 hp, Import
3 Years
Cast Iron Oil-Free Motor and 1-1/4 in FNPT Reducer Brushing
Basement Sumps, Dewatering, Water Transfer and Light Effluent
cCSAus Certified

Little Giant® Submersible Sump Pump, Series: ESP33, 44 gpm, 1-1/2 in FNPT Outlet, 17-1/2 ft Maximum Head, 15 ft Maximum Suction Lift, 1/3 hp, 115 V AC, 5.6 A, 60 Hz Frequency, 1 ph ph, 7.6 psi Maximum, SJTW 10 ft Cord, Polypropylene Semi-Open Impeller, 120 deg F, Upper and Lower Ball Bearing, 10.57 in L x 8.15 in W x 8.93 in H Dimensions, Import

Product Details

Little Giant® Submersible Sump Pump, Series: ESP33, 44 gpm, 1-1/2 in FNPT Outlet, 17-1/2 ft Maximum Head, 15 ft Maximum Suction Lift, 1/3 hp, 115 V AC, 5.6 A, 60 Hz Frequency, 1 ph ph, 7.6 psi Maximum, SJTW 10 ft Cord, Polypropylene Semi-Open Impeller, 120 deg F, Upper and Lower Ball Bearing, 10.57 in L x 8.15 in W x 8.93 in H Dimensions, Import

Attributes

Flow Rate: 44 gpm
Horsepower: 1/3 hp
Maximum Suction Lift: 15 ft
Voltage Rating: 115 V AC
Amperage Rating: 5.6 A
Bearing Type: Upper and Lower Ball
Cord Type: SJTW 10 ft
Dimensions: 10.57 in L x 8.15 in W x 8.93 in H
Domestic/Import: Import
Frequency Rating: 60 Hz
Impeller Type: Polypropylene Semi-Open
Maximum Head: 17-1/2 ft
Maximum Pressure: 7.6 psi
Outlet Size: 1-1/2 in FNPT
Phase: 1
Series: ESP33
Temperature Rating: 120 deg F

Features

  • Oil free motor with thermal overload protection
  • Designed for continuous duty
  • Permanently lubricated upper/lower ball bearings with double lip seal
  • 5 vane impeller
  • Handles up to 1/2 in solids
  • Manual operation
  • 44 gpm at 5 ft H

Resources

Catalog
Instruction/Installation Manual
