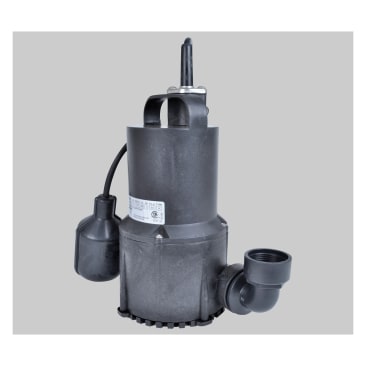

LITTLE GIANT 620135 Image 1

LITTLE GIANT 620135 SP33A

MFR Part #: 620135
SKU #: 1154208
Brand: Little Giant®
UPC: 010121126008
Little Giant® 620135 SP33 Submersible Sump Pump, 25 gpm Flow Rate, 1-1/4 in FNPT Outlet, 1 ph, 1/3 hp, Import
3 Years
Thermoplastic Oil-Free Motor
Basement Sumps, Dewatering and Water Transfer
cCSAus Certified

Little Giant® Submersible Sump Pump, Series: SP33, 25 gpm, 1-1/4 in FNPT Outlet, 23 ft Maximum Head, 15 ft Maximum Suction Lift, 1/3 hp, 115 V AC, 3.5 A, 60 Hz Frequency, 1 ph ph, 10 psi Maximum, SJTW 10 ft Cord, Thermoplastic Semi-Open Impeller, 120 deg F, Upper and Lower Ball Bearing, 11.8 in L x 10 in H Dimensions, Import

Product Details

Little Giant® Submersible Sump Pump, Series: SP33, 25 gpm, 1-1/4 in FNPT Outlet, 23 ft Maximum Head, 15 ft Maximum Suction Lift, 1/3 hp, 115 V AC, 3.5 A, 60 Hz Frequency, 1 ph ph, 10 psi Maximum, SJTW 10 ft Cord, Thermoplastic Semi-Open Impeller, 120 deg F, Upper and Lower Ball Bearing, 11.8 in L x 10 in H Dimensions, Import

Attributes

Flow Rate: 25 gpm
Horsepower: 1/3 hp
Maximum Suction Lift: 15 ft
Voltage Rating: 115 V AC
Amperage Rating: 3.5 A
Bearing Type: Upper and Lower Ball
Cord Type: SJTW 10 ft
Dimensions: 11.8 in L x 10 in H
Domestic/Import: Import
Frequency Rating: 60 Hz
Impeller Type: Thermoplastic Semi-Open
Maximum Head: 23 ft
Maximum Pressure: 10 psi
Outlet Size: 1-1/4 in FNPT
Phase: 1
Series: SP33
Temperature Rating: 120 deg F

Features

  • Oil free motor with thermal overload protection
  • Designed for continuous duty
  • Handles up to 1/4 in solids
  • Built-in suction strainer
  • Removable filter screen
  • Mechanical float switch operation
  • 25 gpm at 5 ft H

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
