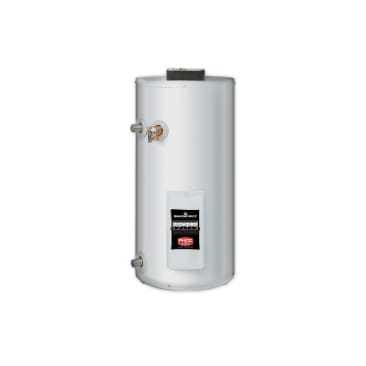

BRADFORD LE16U3-1NAL-458 6USG 1.5KW 120V COMMERCIAL WATER HEATER
Product Details
Attributes
Features
Resources
Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Utility, Series: LE16U3-1, 6 gal Tank, 120 VAC, 1500 W, 1 ph, 3/4 in NPT Water Connection, (1) Screw-In Copper Heating Element, 6 gph at 100 deg F Rise Recovery, 150 psi, ASME Yes/No: No, Steel, 14 in Dia x 16-1/2 in H, Domestic
These small but powerful units fit in just about any location. Available from 6 to 20 gal, they fill the bill when space is at a premium and are field convertible for various wiring configurations.
- Fully automatic thermostat control - Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Direct heat transfer with a single immersed element - Transfers heat directly and efficiently to the water
- Vitraglas® lining - An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system - 1 in non-CFC foam insulation - Covers the sides and top of the tank, reducing the amount of heat loss
- Results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connection - 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
- Protective magnesium anode rod - Provides added protection against corrosion for long-term, trouble free service
- Steel tank - Heavy gauge steel automatically formed, rolled and welded
- Copper screw type immersion element
Product Details
Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Utility, Series: LE16U3-1, 6 gal Tank, 120 VAC, 1500 W, 1 ph, 3/4 in NPT Water Connection, (1) Screw-In Copper Heating Element, 6 gph at 100 deg F Rise Recovery, 150 psi, ASME Yes/No: No, Steel, 14 in Dia x 16-1/2 in H, Domestic
These small but powerful units fit in just about any location. Available from 6 to 20 gal, they fill the bill when space is at a premium and are field convertible for various wiring configurations.
Attributes
Features
- Fully automatic thermostat control - Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Direct heat transfer with a single immersed element - Transfers heat directly and efficiently to the water
- Vitraglas® lining - An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system - 1 in non-CFC foam insulation - Covers the sides and top of the tank, reducing the amount of heat loss
- Results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connection - 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
- Protective magnesium anode rod - Provides added protection against corrosion for long-term, trouble free service
- Steel tank - Heavy gauge steel automatically formed, rolled and welded
- Copper screw type immersion element
