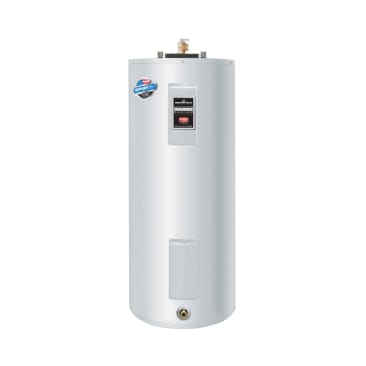

BRADFORD LE280T3-3NCXX-458 80USG 5KW 240V 3PH COMMERCIAL WATER HEATER
Product Details
Attributes
Features
Resources
Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Upright, Series: LE280T3-3, 80 gal Tank, 208 VAC, 5 kW Power, 3 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 18 gph Recovery Rate, 150 psi Pressure, Tall Tall or Short, ASME Yes/No: No, Steel, 24 in Dia x 59-1/4 in H Dimensions, Domestic
Light Duty upright models, with available capacities from 30 to 119 gal, are the perfect choice for many moderate commercial applications and are field convertible for various wiring configurations.
- Fully automatic thermostat control: Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Direct heat transfer with immersed element: Transfers heat directly and efficiently to the water screw-in style
- Factory installed Hydrojet® sediment reduction system
- Vitraglas® lining
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system: 2 in non-CFC foam insulation covers the sides and top of the tank, reducing the amount of heat loss
- Results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connection: 3/4 in NPT factory installed true dielectric fittings extend water heater life and eases installation
- Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
- Protective magnesium rod: Provides added protection against corrosion for long trouble free service
- Steel tank: Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
- Field convertible: Units are shipped from factory standard 3 ph, non-simultaneous and can be converted to 1 ph and/or simultaneous operation in the field
- Copper screw type immersion element
- Hydrojet® total performance system
- Non-simultaneous
Product Details
Bradford White® ElectriFLEX LD™ Electric Water Heater, Light Duty Upright, Series: LE280T3-3, 80 gal Tank, 208 VAC, 5 kW Power, 3 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 18 gph Recovery Rate, 150 psi Pressure, Tall Tall or Short, ASME Yes/No: No, Steel, 24 in Dia x 59-1/4 in H Dimensions, Domestic
Light Duty upright models, with available capacities from 30 to 119 gal, are the perfect choice for many moderate commercial applications and are field convertible for various wiring configurations.
Attributes
Features
- Fully automatic thermostat control: Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Direct heat transfer with immersed element: Transfers heat directly and efficiently to the water screw-in style
- Factory installed Hydrojet® sediment reduction system
- Vitraglas® lining
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system: 2 in non-CFC foam insulation covers the sides and top of the tank, reducing the amount of heat loss
- Results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connection: 3/4 in NPT factory installed true dielectric fittings extend water heater life and eases installation
- Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
- Protective magnesium rod: Provides added protection against corrosion for long trouble free service
- Steel tank: Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
- Field convertible: Units are shipped from factory standard 3 ph, non-simultaneous and can be converted to 1 ph and/or simultaneous operation in the field
- Copper screw type immersion element
- Hydrojet® total performance system
- Non-simultaneous
