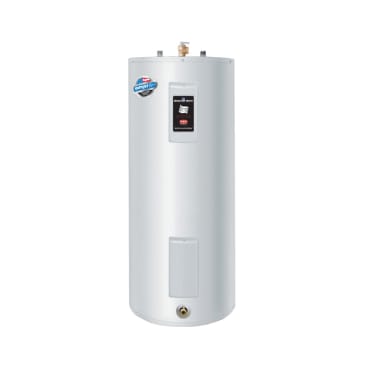

BRADFORD RE350S6-1NCYY-458 50USG 5.5/4KW 240/208V ATMOSPHERIC VENTED WATER HEATER
MFR Part #: RE350S6-1NCYY-458
SKU #: 1256823
Brand: Bradford White®
UPC: 671632124558
Bradford White® RE350S6-1NCYY Upright Electric Water Heater, 50 gal Tank, 208 VAC, 5.5 kW Power Rating, 1 Phase , Short, Domestic
6 Years Limited on Tank/6 Years Limited on Component Parts
Temperature and Pressure Relief Valve
Residential Application
AHRI Certified | ASHRAE 90.1b | CEC Listed | cETLus Listed | CSA Certified | Massachusetts Approved | NAECA Compliant | NSF 372 | UL 1453 | UL 174 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Product Details
Attributes
Features
Resources
Bradford White® Electric Water Heater, Upright, Series: RE350S6, 50 gal Tank, 208 VAC, 5.5 kW Power, 1 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 0.92 Energy Factor, 21 gph Recovery Rate, 150 psi Pressure, Short Tall or Short, ASME Yes/No: No, Steel, 24 in Dia x 47 in H Dimensions, Domestic
The -458 indicates that this SKU was designed and certified for Installation in Canada.
Bradford White 50 Gallon Upright Standard Residential Electric Water Heater. 6-Year Tank Warranty, 5.5/4 kW, 240/208 Volts, Single Phase.
Country Of Origin:
US
Dimensions:
24 in Dia x 47 in H
Energy Factor:
.92
Voltage Rating:
208 VAC
Water Connection:
3/4 in NPT
ASME Yes/No:
No
Domestic/Import:
Domestic
Heating Capacity:
4/5.5 kW
Heating Element:
Screw-In Copper
Material:
Steel
Phase:
1
Power Rating:
5.5 kW
Pressure Rating:
150 psi
Recovery Rate:
21 gph
Series:
RE350S6
Tall or Short:
Short
Tank Capacity:
50 gal
Type:
Upright
Water Heater Type:
Electric
- Fully automatic thermostat control: Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Low restriction brass drain valve: Durable tamper proof design
- Direct heat transfer with immersed element: Transfers heat directly and efficiently to the water screw-in style
- Screw-in style element
- Factory installed hydrojet® total performance system: Sediment reducing device that also increases first hour delivery of hot water while minimizing temperature build-up in tank
- Vitraglas® lining
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system: Non-CFC foam covers the sides and top of the tank, reducing the amount of heat loss, this results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connections: 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
- Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
- Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service
- Design evaluated by ETL in accordance with part 280.707(d) of HUD mobile home construction and safety standards for energy efficiency
- Non-simultaneous operation
Product Details
Bradford White® Electric Water Heater, Upright, Series: RE350S6, 50 gal Tank, 208 VAC, 5.5 kW Power, 1 ph, 3/4 in NPT Water Connection, Screw-In Copper Heating Element, 0.92 Energy Factor, 21 gph Recovery Rate, 150 psi Pressure, Short Tall or Short, ASME Yes/No: No, Steel, 24 in Dia x 47 in H Dimensions, Domestic
The -458 indicates that this SKU was designed and certified for Installation in Canada.
Bradford White 50 Gallon Upright Standard Residential Electric Water Heater. 6-Year Tank Warranty, 5.5/4 kW, 240/208 Volts, Single Phase.
Attributes
Country Of Origin: US
Dimensions: 24 in Dia x 47 in H
Energy Factor: .92
Voltage Rating: 208 VAC
Water Connection: 3/4 in NPT
ASME Yes/No: No
Domestic/Import: Domestic
Heating Capacity: 4/5.5 kW
Heating Element: Screw-In Copper
Material: Steel
Phase: 1
Power Rating: 5.5 kW
Pressure Rating: 150 psi
Recovery Rate: 21 gph
Series: RE350S6
Tall or Short: Short
Tank Capacity: 50 gal
Type: Upright
Water Heater Type: Electric
Features
- Fully automatic thermostat control: Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Low restriction brass drain valve: Durable tamper proof design
- Direct heat transfer with immersed element: Transfers heat directly and efficiently to the water screw-in style
- Screw-in style element
- Factory installed hydrojet® total performance system: Sediment reducing device that also increases first hour delivery of hot water while minimizing temperature build-up in tank
- Vitraglas® lining
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system: Non-CFC foam covers the sides and top of the tank, reducing the amount of heat loss, this results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connections: 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
- Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
- Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service
- Design evaluated by ETL in accordance with part 280.707(d) of HUD mobile home construction and safety standards for energy efficiency
- Non-simultaneous operation
