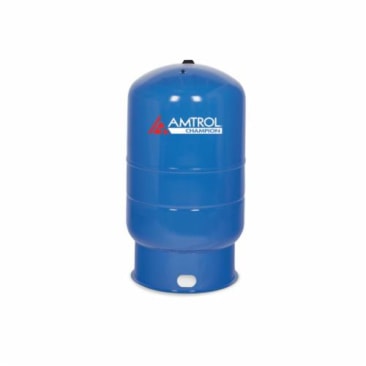

AMTROL CH17255 Image 1

AMTROL 399340 CHAMPION CH-81 81GAL 125PSI VERTICAL STEEL PRESSURE TANK BLUE

MFR Part #: CH17255
SKU #: 1028264
Brand: Amtrol®
UPC: 642031550705
Amtrol® CHAMPION® CH17255 CH Series Diaphragm Well Tank With Vertical Stand, FNPT Discharge, 81 gal, 1-1/4 in Discharge, 22 in Dia Overall, Polypropylene Liner, 125 psig
Residential
IAPMO R and T Low-Lead | NSF/ANSI 61 | Water System Council | National Ground Water Association

Amtrol® CHAMPION® Diaphragm Well Tank, Series: CH Series, FNPT Discharge Connection Type, 1-1/4 in Discharge, 22 in Overall Dia, 57 in Height, 81 gal, 0.41 Max Acceptance Factor, Polypropylene Liner, 125 psig, 38 psig Precharge, Deep Drawn Steel, Dark Blue, Domestic

Champion®, Wel-Flo® and Pro-Line® fixed diaphragm well tanks are the high quality alternative to other designs. They deliver reliable performance at an affordable price. All feature 125 PSIG working pressure, a stainless steel connector, patented Turbulator™ and a 5-year limited warranty. These brands represent an outstanding value compared to competitive well tanks.

Product Details

Amtrol® CHAMPION® Diaphragm Well Tank, Series: CH Series, FNPT Discharge Connection Type, 1-1/4 in Discharge, 22 in Overall Dia, 57 in Height, 81 gal, 0.41 Max Acceptance Factor, Polypropylene Liner, 125 psig, 38 psig Precharge, Deep Drawn Steel, Dark Blue, Domestic

Champion®, Wel-Flo® and Pro-Line® fixed diaphragm well tanks are the high quality alternative to other designs. They deliver reliable performance at an affordable price. All feature 125 PSIG working pressure, a stainless steel connector, patented Turbulator™ and a 5-year limited warranty. These brands represent an outstanding value compared to competitive well tanks.

Attributes

Capacity: 81 gal
Color: Dark Blue
Connection Size: 1-1/4 in
Country Of Origin: US
Discharge Connection Type: FNPT
Domestic/Import: Domestic
Height: 57 in
Liner Material: Polypropylene
Material: Deep Drawn Steel
Max Acceptance Factor: .41
Overall Diameter: 22 in
Precharge Rating: 38 psig
Pressure Rating: 125 psig
Series: CH Series

Features

  • Strongest tank design featuring deep drawn steel and multi-dome construction
  • Welded steel base is stronger than plastic
  • Heavy duty butyl diaphragm
  • Patented Turbulator™ water circulation device
  • Polypropylene liner meets NSF® international standard 61
  • Welded air stem to help eliminate leaks
  • Stainless steel system connection
  • Controls pump cycling in residential well water systems

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
