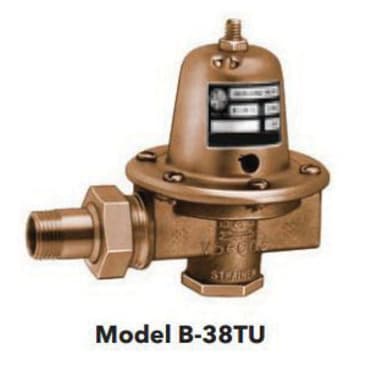

B&G 110190LF B38 LEAD FREE PRESSURE REDUCING VALVE
MFR Part #: 110190LF
SKU #: 1270803
Brand: Bell & Gossett
UPC: 400051322203
Bell & Gossett 110190LF B-38 Lead-Free Pressure Reducing Valve, 1/2 in, NPT, 125 psig, 5.5 to 6 gpm, Brass Body
CSA Certified
Product Details
Attributes
Features
Resources
Bell & Gossett Pressure Reducing Valve, Lead-Free, Series: B-38, 1/2 in Nominal, NPT, 125 psig, 225 deg F, 5.5 to 6 gpm, Brass Body, Brass Trim, EPDM Seat, 4-3/16 in H x 3-1/16 in W
Reducing valves fill the system to a preset pressure for optimum performance. Combination dual unit valves include pressure reducing valve and relief valve.
Body Material:
Brass
Nominal Size:
1/2 in
Pressure Rating:
125 psig
Type:
Lead-Free
Dimensions:
4-3/16 in H x 3-1/16 in W
End Style:
NPT
Flow Rate:
5.5 to 6 gpm
Series:
B-38
Softgoods Material:
EPDM Seat
Temperature Rating:
225 deg F
Trim Material:
Brass
- Fast fill feature reduces start-up time and labor
- Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure
- Convenient cleanable strainer is designed to prevent dirt and sediment from entering the system
- Brass body construction is highly resistant to corrosion and ideal for water systems
- 12 psi factory Setting
- 10 to 25 psi adjustable range
- Maximum flow 5-1/2 to 6 gpm at 125 psig inlet pressure
- Diaphragm, EPT with special insert
- EPDM check valve
- Lead free brass seat
- Stem: lead free brass with EPDM insert
- Lead free brass valve plate, stainer and strainer nut
- Steel non-wetted parts
- Lead free brass contains less than 0.25% lead by weight on wetted surfaces
- Non-Wetted Parts: steel
- Wetted parts: Body, cast lead free brass; diaphragm, EPT with special insert; check valve, EPDM; seat, lead free brass; stem, lead free brass with EPDM insert; valve plate, stainer and strainer nut, lead free brass
- Model B-38
Product Details
Bell & Gossett Pressure Reducing Valve, Lead-Free, Series: B-38, 1/2 in Nominal, NPT, 125 psig, 225 deg F, 5.5 to 6 gpm, Brass Body, Brass Trim, EPDM Seat, 4-3/16 in H x 3-1/16 in W
Reducing valves fill the system to a preset pressure for optimum performance. Combination dual unit valves include pressure reducing valve and relief valve.
Attributes
Body Material: Brass
Nominal Size: 1/2 in
Pressure Rating: 125 psig
Type: Lead-Free
Dimensions: 4-3/16 in H x 3-1/16 in W
End Style: NPT
Flow Rate: 5.5 to 6 gpm
Series: B-38
Softgoods Material: EPDM Seat
Temperature Rating: 225 deg F
Trim Material: Brass
Features
- Fast fill feature reduces start-up time and labor
- Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure
- Convenient cleanable strainer is designed to prevent dirt and sediment from entering the system
- Brass body construction is highly resistant to corrosion and ideal for water systems
- 12 psi factory Setting
- 10 to 25 psi adjustable range
- Maximum flow 5-1/2 to 6 gpm at 125 psig inlet pressure
- Diaphragm, EPT with special insert
- EPDM check valve
- Lead free brass seat
- Stem: lead free brass with EPDM insert
- Lead free brass valve plate, stainer and strainer nut
- Steel non-wetted parts
- Lead free brass contains less than 0.25% lead by weight on wetted surfaces
- Non-Wetted Parts: steel
- Wetted parts: Body, cast lead free brass; diaphragm, EPT with special insert; check valve, EPDM; seat, lead free brass; stem, lead free brass with EPDM insert; valve plate, stainer and strainer nut, lead free brass
- Model B-38
