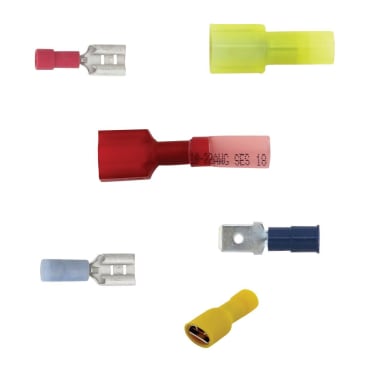

TECHSPAN FR4A250P SLIDE PVC FEMALE RD 22-18 1/4 (25PK)
MFR Part #: FR4A250P
SKU #: 1159508
Brand: Techspan®
UPC: 77685615075
Techspan® FR4A250P Female Quick Disconnect, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, PVC, Red, Insulated
UL Listed | CSA Certified | RoHS Compliant
Product Details
Attributes
Features
Techspan® Female Quick Disconnect, Copper Conductor, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, 600 VAC, -55 to 105 deg C, PVC, Red, Insulated: Insulated
Color:
Red
Conductor Size:
22 to 18 AWG
Conductor Type:
Copper
Country Of Origin:
US
Insulated:
Insulated
Material:
PVC
Rewards:
AD Rewards
Tab Size:
0.25 x 0.032 in
Temperature Rating:
-55 to 105 deg C
Voltage Rating:
600 VAC
- The tin-plated brass connector features the rolled edge design for maximum spring-like insertion/withdrawal force
- Protruding lip and beveled floor with detent aid in insertion and retention of tab and a wire stop prevents over insertion of stripped wire
- For use with copper wire only
- Pro pack
Product Details
Techspan® Female Quick Disconnect, Copper Conductor, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, 600 VAC, -55 to 105 deg C, PVC, Red, Insulated: Insulated
Attributes
Color: Red
Conductor Size: 22 to 18 AWG
Conductor Type: Copper
Country Of Origin: US
Insulated: Insulated
Material: PVC
Rewards: AD Rewards
Tab Size: 0.25 x 0.032 in
Temperature Rating: -55 to 105 deg C
Voltage Rating: 600 VAC
Features
- The tin-plated brass connector features the rolled edge design for maximum spring-like insertion/withdrawal force
- Protruding lip and beveled floor with detent aid in insertion and retention of tab and a wire stop prevents over insertion of stripped wire
- For use with copper wire only
- Pro pack
