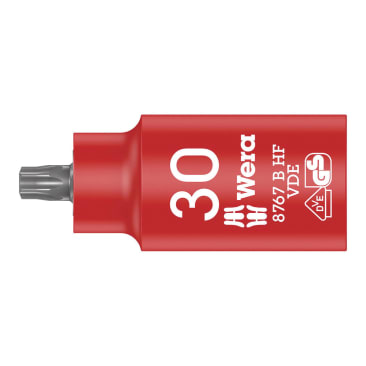

WERA 05004923001 8767 B VDE HF TX 30 HF INSULATED SOCKET
Product Details
Attributes
Features
Resources
Wera® Bit Socket, Insulated, Series: 8767 B VDE HF, Measurement System: Imperial, Torx® Drive, 3/8 in Drive, T30 Bit, 9 mm Bit Length, 23 mm Drive End Width, 55 mm Overall Length, Specifications Met: IEC 60900, Plastic
VDE 3/8 in bit socket with holding function for particularly comfortable screw driving with reduced risk of screw loss when feeding to the component. With increased safety due to yellow insulation core, which becomes visible in case of damage to the outer red VDE insulation layer. Individually tested tool as per IEC 60900 at 10000 V for safe working at the approved voltage of 1000 V.
- Individually tested tool as per IEC 60900 at 10000 V for safe working at up to 1000 V
- Extremely short and compact VDE 3/8 in bit socket for easy work even in very confined spaces
- Increased safety due to 2-component isolation with yellow insulation core under red insulation outer layer
- The holding function holds screws securely on the tool
- Plastic coating protects surfaces from damage
- The Zyklop VDE sockets and extensions offer increased safety thanks to their 2-component isolation with yellow insulation core under red insulation outer layer
- The HF tools developed by Wera® are ideal because they feature an optimized geometry of the original TORX® profile
- The wedging forces resulting from the surface pressure between the drive tip and the screw profile mean that TORX® screws made according to acument intellectual Properties specifications are securely held on the tool
Product Details
Wera® Bit Socket, Insulated, Series: 8767 B VDE HF, Measurement System: Imperial, Torx® Drive, 3/8 in Drive, T30 Bit, 9 mm Bit Length, 23 mm Drive End Width, 55 mm Overall Length, Specifications Met: IEC 60900, Plastic
VDE 3/8 in bit socket with holding function for particularly comfortable screw driving with reduced risk of screw loss when feeding to the component. With increased safety due to yellow insulation core, which becomes visible in case of damage to the outer red VDE insulation layer. Individually tested tool as per IEC 60900 at 10000 V for safe working at the approved voltage of 1000 V.
Attributes
Features
- Individually tested tool as per IEC 60900 at 10000 V for safe working at up to 1000 V
- Extremely short and compact VDE 3/8 in bit socket for easy work even in very confined spaces
- Increased safety due to 2-component isolation with yellow insulation core under red insulation outer layer
- The holding function holds screws securely on the tool
- Plastic coating protects surfaces from damage
- The Zyklop VDE sockets and extensions offer increased safety thanks to their 2-component isolation with yellow insulation core under red insulation outer layer
- The HF tools developed by Wera® are ideal because they feature an optimized geometry of the original TORX® profile
- The wedging forces resulting from the surface pressure between the drive tip and the screw profile mean that TORX® screws made according to acument intellectual Properties specifications are securely held on the tool
