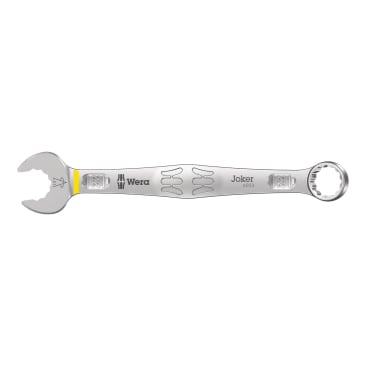

WERA 05020502001 6003 JOKER 22MM COMBO WRENCH

MFR Part #: 05020502001
SKU #: 1250498
Brand: Wera®
UPC: 4013288218858
Wera® 05020502001 6003 Joker Combination Wrench, 22 mm Wrench, 260 mm OAL
For hexagon screw heads and bolts
PROP65: Cancer and reproductive harm - www.P65warnings.ca.gov

Wera® Combination Wrench, Series: 6003 Joker, Measurement System: Metric, Double Hex Wrench, 22 mm Wrench Opening, 260 mm Overall Length, 49 mm Open End Width, 7.5 mm Open End Thickness, 31.5 mm Box End Width, 13 mm Box End Thickness, 15 deg Head

As the installation space becomes increasingly tight during screwdriving, tools are necessary that enable users to work successfully even in such situations. Narrow spaces require additional placement points of the tool. Can spanners be modified so that the placement possibilities of the tool increase. The combination of the 7.5 deg pivoted mouth and the double hexagon geometry doubles the placement points. A repeated 180 deg turn of the wrench around the longitudinal axis during screwdriving provides four placement possibilities and bolts or screw heads can be engaged every 15 deg. The Joker 6003 with its smart mouth geometry significantly expands the range of uses in confined spaces. The Joker 6003 will automatically find the respective placement point after every turn. The slim yet robust ring side is angled by 15 deg to the tool axis. The high-quality surface treatment achieves a high and long-lasting corrosion protection. With tool finder take it easy - color coding by size.

Product Details

Wera® Combination Wrench, Series: 6003 Joker, Measurement System: Metric, Double Hex Wrench, 22 mm Wrench Opening, 260 mm Overall Length, 49 mm Open End Width, 7.5 mm Open End Thickness, 31.5 mm Box End Width, 13 mm Box End Thickness, 15 deg Head

As the installation space becomes increasingly tight during screwdriving, tools are necessary that enable users to work successfully even in such situations. Narrow spaces require additional placement points of the tool. Can spanners be modified so that the placement possibilities of the tool increase. The combination of the 7.5 deg pivoted mouth and the double hexagon geometry doubles the placement points. A repeated 180 deg turn of the wrench around the longitudinal axis during screwdriving provides four placement possibilities and bolts or screw heads can be engaged every 15 deg. The Joker 6003 with its smart mouth geometry significantly expands the range of uses in confined spaces. The Joker 6003 will automatically find the respective placement point after every turn. The slim yet robust ring side is angled by 15 deg to the tool axis. The high-quality surface treatment achieves a high and long-lasting corrosion protection. With tool finder take it easy - color coding by size.

Attributes

Country Of OriginCzech Republic
Measurement SystemMetric
Overall Length260 mm
Wrench Opening22 mm
Wrench TypeDouble Hex
Box End Thickness13 mm
Box End Width31.5 mm
Head Angle15 deg
Open End Thickness7.5 mm
Open End Width49 mm
Series6003 Joker

Features

  • Especially suitable for tight spaces
  • The special mouth geometry expands the placement possibilities of the tool
  • The low return angle in the mouth "takes" the screw every 15 deg
  • Slim ring side angled by 15 deg
  • With tool finder take it easy - color coding by size
