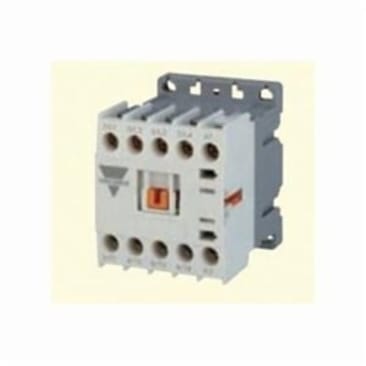

CARLO GAVAZZI CGMS-12D-24S-10 MINI CONTACTOR 12A 24VDC COIL
Product Details
Attributes
Features
Carlo Gavazzi Mini Contactor, DC Type Magnetic, Series: CGM, 24 VDC Coil, 12 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 1NO Auxiliary Contacts, 690 VAC Contact, NEMA 00 Size, Screw Clamp Terminal, DIN Rail/Back Panel/PCB Mounting, 58 mm H x 45 mm W x 69 mm D Dimensions
Carlo Gavazzi offers a complete range of contactors and Overloads for switching currents up to 900 Amps (600 HP @ 480 VAC). All contactors are available with a wide selection of coil voltages and come standard with built-in auxiliary outputs. Interlock and wiring kits are available to turn 2 standard contactors into reversing contactors.
- Compact size with powerful performance
- Cost effective solution
- Light in weight and requires minimal panel space
Product Details
Carlo Gavazzi Mini Contactor, DC Type Magnetic, Series: CGM, 24 VDC Coil, 12 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 1NO Auxiliary Contacts, 690 VAC Contact, NEMA 00 Size, Screw Clamp Terminal, DIN Rail/Back Panel/PCB Mounting, 58 mm H x 45 mm W x 69 mm D Dimensions
Carlo Gavazzi offers a complete range of contactors and Overloads for switching currents up to 900 Amps (600 HP @ 480 VAC). All contactors are available with a wide selection of coil voltages and come standard with built-in auxiliary outputs. Interlock and wiring kits are available to turn 2 standard contactors into reversing contactors.
Attributes
Features
- Compact size with powerful performance
- Cost effective solution
- Light in weight and requires minimal panel space
