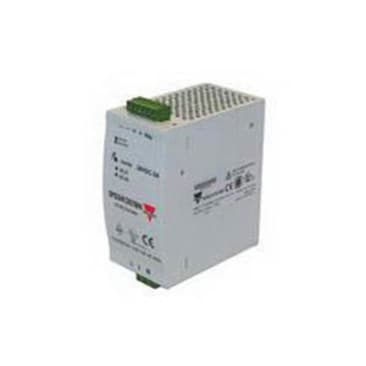

CARLO GAVAZZI SPD121201 Image 1

CARLO GAVAZZI SPD121201 POWER SUPPLY 12VDC 120W 10AMP

MFR Part #: SPD121201
SKU #: 1062158
Brand: Carlo Gavazzi
UPC: 8032970000000
Carlo Gavazzi SPD121201 Switching Power Supply, 264 VAC Input, 12 VDC Output, 10 A Output, LED Indicator, Metal
cULus Listed | TUV/CE Marked

Carlo Gavazzi Switching Power Supply, 264 VAC Input, 12 VDC Output, +/-1 % Output Voltage Accuracy, 10 A Output, 150 ms Output Voltage Falling Time, +/-1 % Load Regulation, +/-1 % Line Regulation, 2 ms Recovery Time, -35 to 71 deg C Operating, Short Circuit Protection Type, LED Indicator, Metal, 124 mm H x 64.4 mm W x 111.9 mm D

The Switching power supplies SPD Series are specially designed to be used in all automation application where the installation is on a DIN rail and compact dimensions and performance are a must.

Product Details

Carlo Gavazzi Switching Power Supply, 264 VAC Input, 12 VDC Output, +/-1 % Output Voltage Accuracy, 10 A Output, 150 ms Output Voltage Falling Time, +/-1 % Load Regulation, +/-1 % Line Regulation, 2 ms Recovery Time, -35 to 71 deg C Operating, Short Circuit Protection Type, LED Indicator, Metal, 124 mm H x 64.4 mm W x 111.9 mm D

The Switching power supplies SPD Series are specially designed to be used in all automation application where the installation is on a DIN rail and compact dimensions and performance are a must.

Attributes

Dimensions: 124 mm H x 64.4 mm W x 111.9 mm D
Indicator Type: LED
Input Voltage: 264 VAC
Line Regulation: +/-1 %
Load Regulation: +/-1 %
Material: Metal
Operating Temperature: -35 to 71 deg C
Output Current: 10 A
Output Voltage: 12 VDC
Output Voltage Accuracy: +/-1 %
Output Voltage Falling Time: 150 ms
Protection Type: Short Circuit
Recovery Time: 2 ms

Features

  • Installation on DIN rail 7.5 or 15 mm
  • Short-circuit protection
  • High-efficiency
  • Power ready output
  • LED indicator for DC power on
  • LED indicator for DC low
  • Compact dimensions

Resources

Specification Sheet
