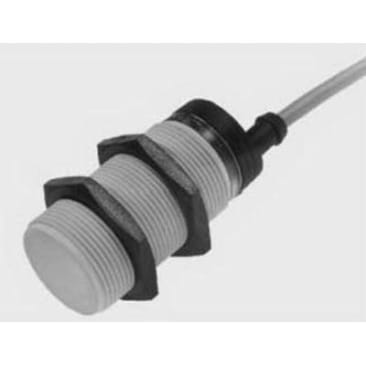

CARLO GAVAZZI CA30CLN25CP PROXIMITY SENSOR CAPACITIVE
MFR Part #: CA30CLN25CP
SKU #: 1133623
Brand: Carlo Gavazzi
UPC: 5709870000000
Carlo Gavazzi CA30CLN25CP Capacitive Proximity Sensor, 25 mm Sensing, <=200 ms Response, <=5 % Accuracy
For plastic machinery
CE Marked | CSA Certified | UL Listed
Product Details
Attributes
Features
Resources
Carlo Gavazzi Capacitive Proximity Sensor, 25 mm Sensing, <=200 ms Response, Accuracy: <=5 %, 20 to 250 VAC/VDC Supply, 10 mA, 10 Hz, LED Indicator, Yellow Indicator, -25 to 80 deg C, Thermoplastic Polyester Housing, Connection Type: 2 m Gray PVC Cable, 2 x 0.5 sq-mm
Accuracy:<=5 %
Amperage Rating:10 mA
Connection Type:2 m Gray PVC Cable, 2 x 0.5 sq-mm
Frequency Rating:10 Hz
Housing Material:Thermoplastic Polyester
Indicator Color:Yellow
Indicator Type:LED
Response Time:<=200 ms
Sensing Range:25 mm
Supply Voltage:20 to 250 VAC/VDC
Temperature Rating:-25 to 80 deg C
- Featuring triple shield sensor protection
- Power MOSFET output
- Make and break switching function, selectable
- High noise immunity
- Non-flush type
Product Details
Carlo Gavazzi Capacitive Proximity Sensor, 25 mm Sensing, <=200 ms Response, Accuracy: <=5 %, 20 to 250 VAC/VDC Supply, 10 mA, 10 Hz, LED Indicator, Yellow Indicator, -25 to 80 deg C, Thermoplastic Polyester Housing, Connection Type: 2 m Gray PVC Cable, 2 x 0.5 sq-mm
Attributes
Accuracy: <=5 %
Amperage Rating: 10 mA
Connection Type: 2 m Gray PVC Cable, 2 x 0.5 sq-mm
Frequency Rating: 10 Hz
Housing Material: Thermoplastic Polyester
Indicator Color: Yellow
Indicator Type: LED
Response Time: <=200 ms
Sensing Range: 25 mm
Supply Voltage: 20 to 250 VAC/VDC
Temperature Rating: -25 to 80 deg C
Features
- Featuring triple shield sensor protection
- Power MOSFET output
- Make and break switching function, selectable
- High noise immunity
- Non-flush type
