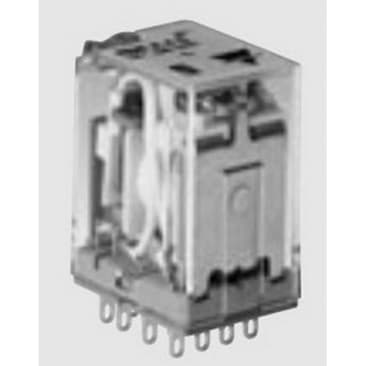

CARLO GAVAZZI RMIA4-5115AC 5A 4 POLE 115VAC RELAY
Product Details
Attributes
Features
Resources
Carlo Gavazzi Monostable Midi Industrial Relay, Series: RMI Series, 5 A, 1250 VA, 150 W, 10 to 55 Hz, 115 VAC Coil, 96 VAC Pickup Voltage, 36 VAC Drop Down Voltage, 250 V Insulation Voltage, 250 VAC/30 VDC Switching Voltage, 11 kOhm, 4PDT, 250 VAC Contact, 4 Pole, Soldering Terminal, Non-Latching Coil, 25 ms Operating, >100000 cycles Operating Cycles, IP40 IP Rating, Silver Alloy Contact, -55 to 70 deg C, 36 mm Height, 21.5 mm Width, 28 mm D
- High switching power
- Small size
- 5 A switching capacity
- 4-pole configuration
- AC coils 6 to 230 VAC
- DC coils 5 to 110 VDC
- 1.5 kV dielectric coil to contacts
- Standard with LED, push with arm and flag
Product Details
Carlo Gavazzi Monostable Midi Industrial Relay, Series: RMI Series, 5 A, 1250 VA, 150 W, 10 to 55 Hz, 115 VAC Coil, 96 VAC Pickup Voltage, 36 VAC Drop Down Voltage, 250 V Insulation Voltage, 250 VAC/30 VDC Switching Voltage, 11 kOhm, 4PDT, 250 VAC Contact, 4 Pole, Soldering Terminal, Non-Latching Coil, 25 ms Operating, >100000 cycles Operating Cycles, IP40 IP Rating, Silver Alloy Contact, -55 to 70 deg C, 36 mm Height, 21.5 mm Width, 28 mm D
Attributes
Features
- High switching power
- Small size
- 5 A switching capacity
- 4-pole configuration
- AC coils 6 to 230 VAC
- DC coils 5 to 110 VDC
- 1.5 kV dielectric coil to contacts
- Standard with LED, push with arm and flag
