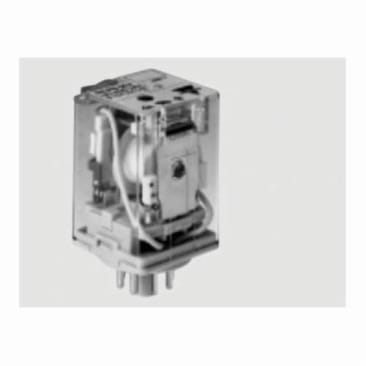

CARLO GAVAZZI RCP800224DC Image 1

CARLO GAVAZZI RCP800224DC 10A 24VDC DPDT 8-PIN RELAY

MFR Part #: RCP800224DC
SKU #: 1079668
Brand: Carlo Gavazzi
UPC: 400005719295
Carlo Gavazzi RCP800224DC Type RCP Monostable Industrial Relay, 10 A, 8 Pin, 2 Form C DPDT Contact, 24 VDC V Coil
IMQ | UL Listed | TUV | CSA Certified

Carlo Gavazzi Industrial Relay, Type RCP Monostable, 10 A, 300 W to 2500 VA, 24 VDC Coil, 2 Form C DPDT, 250 V AC/30 V DC 10 A Contact, 8 Pins, 2 Poles, Socket Mount, Octal/Undecal Plug Terminal, IP40, -40 to 55 deg C, 56 mm H x 35.5 mm W x 35.5 mm D

Product Details

Carlo Gavazzi Industrial Relay, Type RCP Monostable, 10 A, 300 W to 2500 VA, 24 VDC Coil, 2 Form C DPDT, 250 V AC/30 V DC 10 A Contact, 8 Pins, 2 Poles, Socket Mount, Octal/Undecal Plug Terminal, IP40, -40 to 55 deg C, 56 mm H x 35.5 mm W x 35.5 mm D

Attributes

Amperage Rating: 10 A
Coil Voltage: 24 V DC
Contact Form: 2 Form C DPDT
Contact Rating: 250 V AC/30 V DC 10 A
Dimensions: 56 mm H x 35.5 mm W x 35.5 mm D
Enclosure Type: IP40
Mounting Type: Socket
Number of Pins: 8
Number of Poles: 2
Power Rating: 300 W to 2500 VA
Temperature Rating: -40 to 55 deg C
Terminal Type: Octal/Undecal Plug
Type: Type RCP Monostable

Features

  • 8 or 11-pin socket mounting
  • 2 or 3 change over contacts
  • Long life (minimum 100.000 electrical operations) at 10 A at 250 VAC/30 VDC
  • Switching capacity 12 A (5x104 cycles)
  • Matched sockets available
  • Standard with LED, push with arm and flag
  • Silver alloy material
  • 1x105 ops electrical life, 1x107 ops mechanical life
  • 3,750 VAC dielectric coil to contacts
