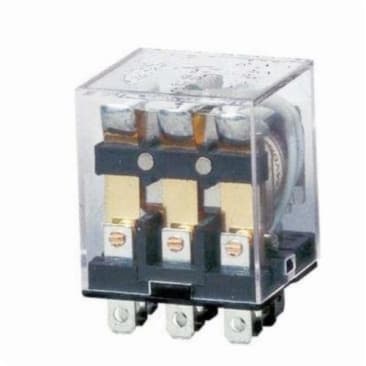

CARLO GAVAZZI RPYA003A120L 10AMP 120VAC 3PDT RELAY
MFR Part #: RPYA003A120L
SKU #: 1109557
Brand: Carlo Gavazzi
UPC: 8032970000000
Carlo Gavazzi RPYA003A120L Monostable General Purpose Relay, 10 A, 11 Pin, 3DPDT Contact, 120 VAC V Coil
For a wide range of midi industrial applications
UL Listed | CSA Certified | CE Marked | RoHS Compliant | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Details
Attributes
Features
Resources
Carlo Gavazzi General Purpose Relay, Monostable, Series: RPY, 10 A, 1/2 hp Power, 50/60 Hz Frequency, 120 VAC Coil, 3DPDT Contact Form, 10 A at 250 VAC Contact, 11 Pins, 3 Pole, Base/Plug-In Mounting, Plug-In/Blade Terminal, LED Display, -25 to 55 deg C, 36 mm L x 28 mm W x 31.5 mm H Dimensions
Amperage Rating:
10 A
Coil Voltage:
120 VAC
Contact Form:
3DPDT
Contact Rating:
10 A at 250 VAC
Dimensions:
36 mm L x 28 mm W x 31.5 mm H
Display Type:
LED
Frequency Rating:
50/60 Hz
Mounting Type:
Base/Plug-In
Number of Pins:
11
Number of Poles:
3
Power Rating:
1/2 hp
Series:
RPY
Temperature Rating:
-25 to 55 deg C
Terminal Type:
Plug-In/Blade
Type:
Monostable
- High switching power
- Flanged pins 5 mm
- DC coils from 6 to 220 V, AC coils from 6 to 380 V
- 96 VAC pick-up voltage, 36 VAC drop out voltage, 142 VAC max allowed voltage, 17 mA at 50 Hz and 14.5 mA at 60 Hz coil current, 2700 W coil resistance at 120 VAC nominal voltage
- 10 A at 250 VAC/28 VDC rated values
- AgSnO2 material
- 50 mW contact resistance
- 2500 VA/280 W max switching power
- 1x10^5 cycles (3600 ops/h) electrical life and x10^7 cycles (18000 ops/h) mechanical life
- 2000 VAC, 1200 VAC, 1200 VAC test voltage between coil and contacts between open contact
- 1000 MW to 500 V insulation resistance
- 20 ms operating time and release time at nominal voltage
- 35 to 85 percent ambient humidity
- 10 to 55 Hz 1 mm vibration resistance, 98m/sq-s (10G) shock resistance
- 1/2 hp at 120 VAC, 3/4 hp at 220 VAC
