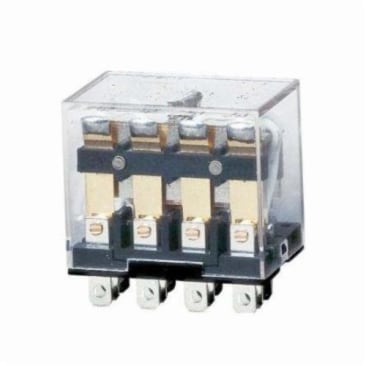

CARLO GAVAZZI RPYA00424L 10A 12VDC 4PDT RELAY
MFR Part #: RPYA00424L
SKU #: 1134038
Brand: Carlo Gavazzi
UPC: 8032970000000
Carlo Gavazzi RPYA00424L Monostable General Purpose Relay, 10 A, 14 Pin, 4DPDT Contact, 24 VDC V Coil
For a wide range of midi industrial applications
UL Listed | CSA Certified | CE Marked | RoHS Compliant | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Details
Attributes
Features
Resources
Carlo Gavazzi General Purpose Relay, Monostable, Series: RPY, 10 A, 1/2 hp Power, 24 VDC Coil, 4DPDT Contact Form, 10 A at 250 VAC Contact, 14 Pins, 4 Pole, Base/Plug-In Mounting, Plug-In/Blade Terminal, LED Display, -25 to 55 deg C, 36 mm L x 28 mm W x 41.5 mm H Dimensions
Amperage Rating:10 A
Coil Voltage:24 VDC
Contact Form:4 Form C 4DPDT
Contact Rating:10 A at 250 VAC
Dimensions:36 mm L x 28 mm W x 41.5 mm H
Display Type:LED
Mounting Type:Base/Plug-In
Number of Pins:14
Number of Poles:4
Power Rating:1/2 hp
Series:RPY
Temperature Rating:-25 to 55 deg C
Terminal Type:Plug-In/Blade
Type:Monostable
- High switching power
- Flanged pins 5 mm
- DC coils from 6 to 220 V, AC coils from 6 to 380 V
- 18 VAC pick-up voltage, 2.4 VAC drop out voltage, 26.4 VAC Max. allowed voltage, 70 mA coil current, 360 W Coil Resistance at 24 VDC nominal voltage
- 10 A at 250 VAC/28 VDC rated values
- AgSnO2 material
- 50 mW contact resistance
- 2500 VA/280 W max switching power
- 1x10^5 cycles (3600 ops/h) electrical life and x10^7 cycles (18000 ops/h) mechanical life
- 2000 VAC, 1200 VAC, 1200 VAC test voltage between coil and contacts between open contact
- 1000 MW to 500 V insulation resistance
- 20 ms operating time and release time at nominal voltage
- 35 to 85 percent ambient humidity
- 10 to 55 Hz 1 mm vibration resistance, 98m/sq-s (10G) shock resistance
- 1/2 hp at 120 VAC, 3/4 hp at 220 VAC
Product Details
Carlo Gavazzi General Purpose Relay, Monostable, Series: RPY, 10 A, 1/2 hp Power, 24 VDC Coil, 4DPDT Contact Form, 10 A at 250 VAC Contact, 14 Pins, 4 Pole, Base/Plug-In Mounting, Plug-In/Blade Terminal, LED Display, -25 to 55 deg C, 36 mm L x 28 mm W x 41.5 mm H Dimensions
Attributes
Amperage Rating: 10 A
Coil Voltage: 24 VDC
Contact Form: 4 Form C 4DPDT
Contact Rating: 10 A at 250 VAC
Dimensions: 36 mm L x 28 mm W x 41.5 mm H
Display Type: LED
Mounting Type: Base/Plug-In
Number of Pins: 14
Number of Poles: 4
Power Rating: 1/2 hp
Series: RPY
Temperature Rating: -25 to 55 deg C
Terminal Type: Plug-In/Blade
Type: Monostable
Features
- High switching power
- Flanged pins 5 mm
- DC coils from 6 to 220 V, AC coils from 6 to 380 V
- 18 VAC pick-up voltage, 2.4 VAC drop out voltage, 26.4 VAC Max. allowed voltage, 70 mA coil current, 360 W Coil Resistance at 24 VDC nominal voltage
- 10 A at 250 VAC/28 VDC rated values
- AgSnO2 material
- 50 mW contact resistance
- 2500 VA/280 W max switching power
- 1x10^5 cycles (3600 ops/h) electrical life and x10^7 cycles (18000 ops/h) mechanical life
- 2000 VAC, 1200 VAC, 1200 VAC test voltage between coil and contacts between open contact
- 1000 MW to 500 V insulation resistance
- 20 ms operating time and release time at nominal voltage
- 35 to 85 percent ambient humidity
- 10 to 55 Hz 1 mm vibration resistance, 98m/sq-s (10G) shock resistance
- 1/2 hp at 120 VAC, 3/4 hp at 220 VAC
